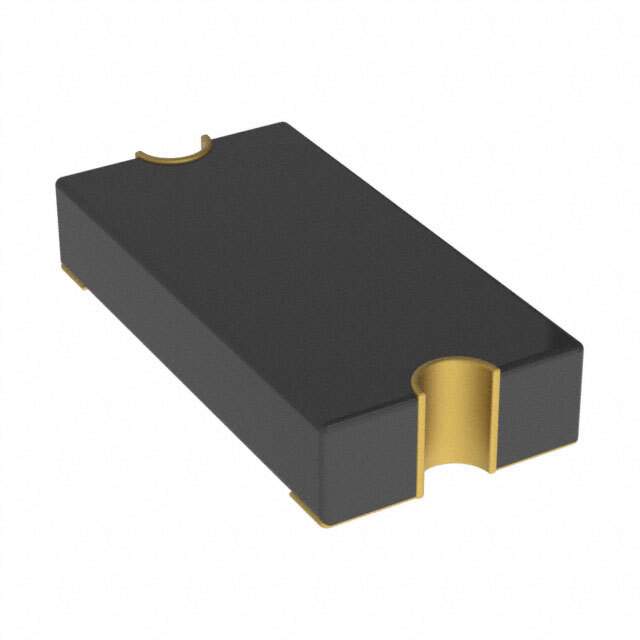

MF-NSMF035-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSMF035-2

Part No MF-NSMF035-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .35A HOLD SMD / PTC Resettable Fuse 0.35A(hold) 0.75A(trip) 6V 100A 0.6W 0.1s 0.3Ohm SMD Solder Pad 1206 T/R Automotive
Datasheet
MF-NSMF035-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 350mA
Current - Trip (It) 750mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 300 mOhm
Resistance - Post Trip (R1) (Max) 1.2 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 023198-MF-NSMF035-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive
Family Name MF-NSMF
Introduction Date January 26, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-NSMF035-2 CAD Model

Description

The Bourns Inc. MF-NSMF035-2 is a polymeric type circuit protection component designed for use in automotive applications.

  • Maximum Voltage Rating: 6V
  • Maximum Current Rating: 100A
  • Hold Current: 350mA
  • Trip Current: 750mA
  • Time to Trip: 100ms
  • AEC-Q200 Rated: Yes
  • Approved by: cURus and TUV
  • Mounting Type: SMD (SMT)
  • Thickness: 0.033" (0.85mm)
  • Dimensions: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Resistance: 300 mOhm initial and 1.2 Ohm post trip
  • Halogen-Free Compliant: Yes
  • Manufactured in: China
  • Common-Used Part: Yes
  • Popularity: high
  • Supply and demand status: sufficient
