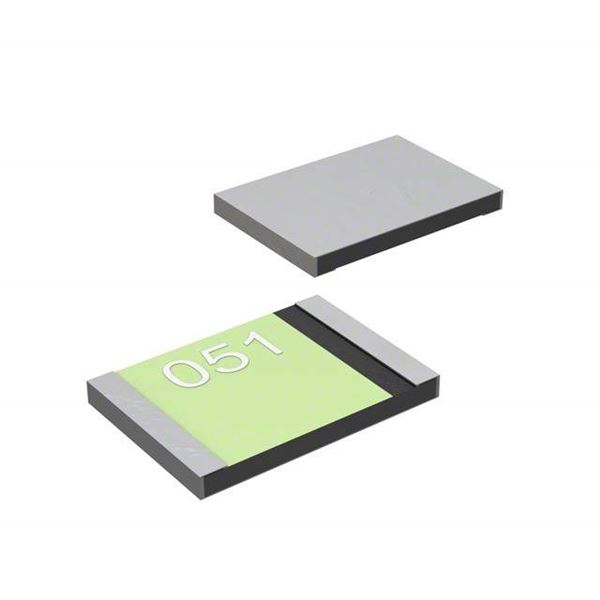

MF-MSMD125-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-MSMD125-2

Part No MF-MSMD125-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 1.25A HOLD SMD
Datasheet
MF-MSMD125-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 1.25A
Current - Trip (It) 2.5A
Time to Trip 400ms
Resistance - Initial (Ri) (Min) 35 mOhm
Resistance - Post Trip (R1) (Max) 140 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.015" W (4.55mm x 0.39mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 125178-MF-MSMD125-2
Ultra Librarian 3D Model Ultra Librarian MF-MSMD125-2 CAD Model

Description

The Bourns Inc. MF-MSMD125-2 is an obsolete (EOL) polymeric type circuit protection component.

  • Function: protect electronic circuits from overcurrent and overvoltage conditions
  • Voltage Rating: 6V
  • Maximum Current Rating: 100A
  • Time to Trip: 400ms
  • Approvals: CSA, TUV, and UR
  • Package: reel
  • Thickness: 0.134" (3.41mm)
  • Resistance - Initial (Ri) (Min): 35 mOhm
  • Resistance - Post trip (R1) (Max): 140 mOhm
  • Temperature Range: -40°C to 85°C
  • Category: circuit protection components
