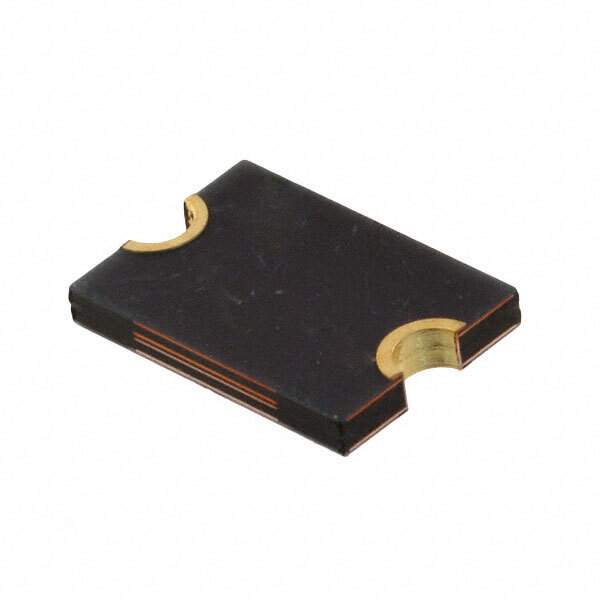

MF-LSMF300/24X-2

Part No MF-LSMF300/24X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESET 3.0A 24V SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 20A
Current - Hold (Ih) (Max) 3A
Current - Trip (It) 5.2A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 20 mOhm
Resistance - Post Trip (R1) (Max) 75 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.289" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.063" (1.60mm)
Approvals cURus, TUV
Win Source Part Number 023185-MF-LSMF300/24X-2
Family Name MF-LSMF
Introduction Date December 17, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-LSMF300/24X-2 CAD Model

Description

MF-LSMF300/24X-2 from Bourns Inc. is a PTC resettable fuse intended for circuit protection in designs that need resettable overcurrent defense rather than one-time fuse replacement. Components in this category are commonly used in consumer electronics, power input stages, battery-powered equipment, industrial control interfaces, and communication ports where temporary fault conditions may occur. Engineers typically choose a resettable fuse like this to help reduce service events, improve field recoverability, and simplify maintenance in systems exposed to shorts, overloads, or misconnection events. As a Bourns protection component, it fits applications where compact protection, automatic reset behavior, and BOM efficiency are important. The lifecycle status for MF-LSMF300/24X-2 is currently listed as information not available, so teams should confirm current production status directly with Bourns or authorized channels before locking it into new designs. RoHS compliance information is also not available in the provided data and should be verified through the official datasheet, declaration, or manufacturer compliance documentation.
