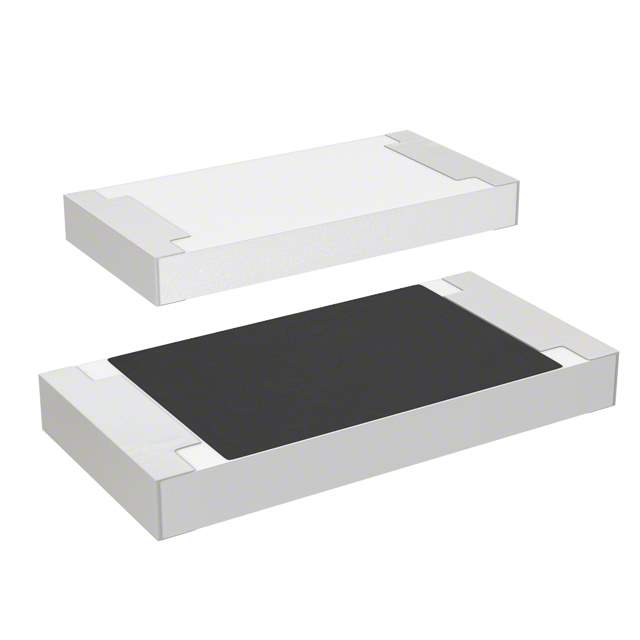

The CRA2010-FZR020-ELF is a chip resistor manufactured by Bourns Inc. It is a surface mount device (SMD) designed for use in a wide range of electronic circuits. This resistor is known for its stability, reliability, and compact size, making it ideal for applications where space is limited.

Applications

• Consumer Electronics (e.g., smartphones, tablets)
• Industrial Equipment
• Automotive Electronics
• Medical Devices
• Power Supplies

Features

• Surface Mount Design: Facilitates automated assembly and reduces board space.
• 2010 Package Size: Standard size for easy integration into existing designs.
• 20 mOhm Resistance: Very low resistance value for current sensing applications.
• High Power Rating: Can withstand high power dissipation.
• Tight Tolerance: Provides accurate resistance values.
• RoHS Compliant: Meets environmental regulations.

Benefits

• Reduced Board Space: Compact size allows for higher component density.
• Improved Circuit Performance: Accurate resistance values ensure optimal circuit operation.
• Increased Reliability: Stable and robust design ensures long-term performance.
• Simplified Assembly: Surface mount design facilitates automated assembly.
• Environmentally Friendly: RoHS compliance ensures compliance with environmental regulations.

Additional Details

The CRA2010-FZR020-ELF resistor utilizes a thick film resistive element for enhanced stability and reliability. It's designed to operate over a wide temperature range, making it suitable for various environmental conditions. The resistor is typically supplied on tape and reel for automated assembly. The manufacturer's datasheet provides detailed information on the resistor's electrical characteristics, thermal performance, and soldering recommendations. It's important to consult the datasheet to ensure proper application and handling of the resistor. This component is often used in current sensing applications because of the very low resistance value.
