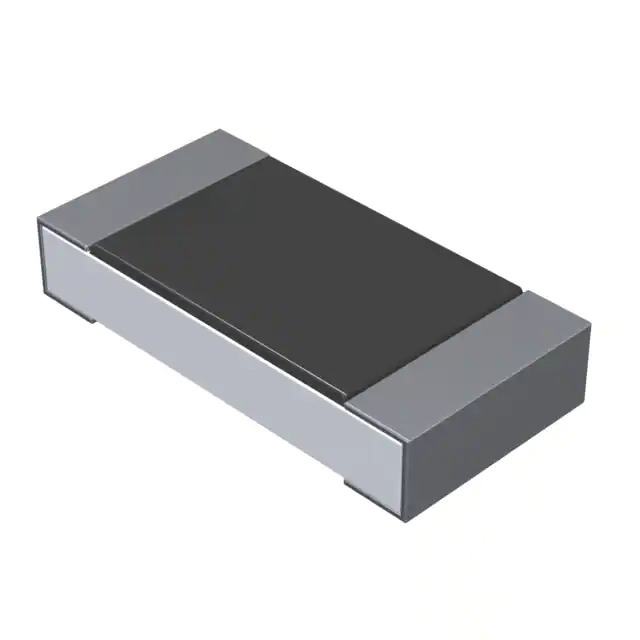

Same model may have multiple batches, images only for reference.
CR1206-FX-1782ELF Bourns Inc.
Same model may have multiple batches, images only for reference.

CR1206-FX-1782ELF

Part No CR1206-FX-1782ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 17.8K OHM 1% 1/4W 1206
Datasheet
CR1206-FX-1782ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR1206
Package Tape & Reel
Product Status Active
Resistance 17.8 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.030" (0.75mm)
Number of Terminations 2
Failure Rate -
Base Product Number CR1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1373828-CR1206-FX-1782ELF
Ultra Librarian 3D Model Ultra Librarian CR1206-FX-1782ELF CAD Model

Description

The CR1206-FX-1782ELF is a chip resistor manufactured by Bourns Inc.

  • Series: CR1206
  • Package Size: 1206 (3216 Metric)
  • Resistance: 17.8 kOhms
  • Power Rating: 0.25W, 1/4W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Moisture Resistant: Yes
  • REACH: Unaffected
  • Temperature Range: -55°C to 155°C
  • Mounting Type: Surface mount
  • Terminations: 2
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Seated Height: 0.030" (0.75mm)
