Same model may have multiple batches, images only for reference.

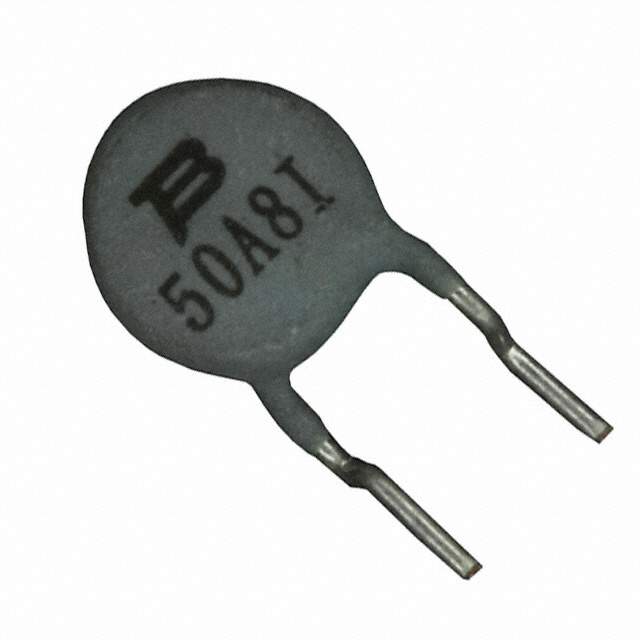

CMF-RL50A-0 Real Image
Same model may have multiple batches, images only for reference.

CMF-RL50A-0

Part No CMF-RL50A-0
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 220V 50MA RADIAL / Ceramic PTC Resettable Fuse 220V (600V Int) 50 mA Ih Through Hole Radial, Disc
Datasheet
CMF-RL50A-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bourns Inc.
Series CMF-RL
Package Bulk
Type Ceramic
Voltage - Max 220V (600V Int)
Current - Max 3 A
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 100 mA
Time to Trip 100 ms
Resistance - 25°C (Typ) 50 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.295" L x 0.220" W (7.50mm x 5.60mm)
Height - Seated (Max) 0.512" (13.00mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Base Product Number CMF-RL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names CMFRL50A0
Standard Package 300
Win Source Part Number 1052609-CMF-RL50A-0
Ultra Librarian 3D Model Ultra Librarian CMF-RL50A-0 CAD Model

Description

The CMF-RL50A-0 PTC resettable fuse is a ceramic type fuse that is designed for use in various electronic equipment.

  • Maximum Voltage: 220V (600V Int)
  • Maximum Current: 3A
  • Current Hold (Ih): 50mA
  • Current Trip (It): 100mA
  • Time to Trip: 100ms
  • Mount: Through-Hole
  • Package/Case: Radial, Disc
  • Resistance @ 25°C (Typ): 50 Ohms
  • Temperature Range: -40°C to 125°C
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
