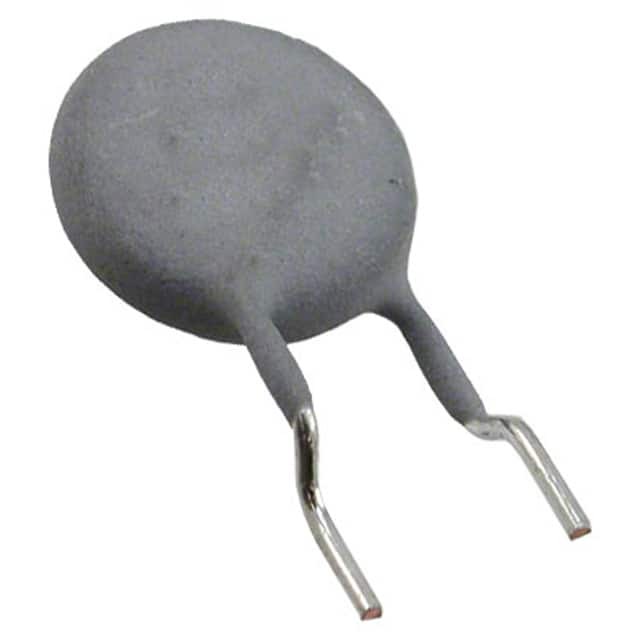

Same model may have multiple batches, images only for reference.
CMF-RL10-0
Same model may have multiple batches, images only for reference.

CMF-RL10-0

Part No CMF-RL10-0
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 220V 150MA RADIAL
Datasheet
CMF-RL10-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bourns Inc.
Series CMF-RL
Package Bulk
Product Status Active
Type Ceramic
Voltage - Max 220V (600V Int)
Current - Hold (Ih) (Max) 150 mA
Current - Trip (It) 300 mA
Current - Max 3 A
Time to Trip 450 ms
Resistance - 25°C (Typ) 10 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.374" L x 0.177" W (9.50mm x 4.50mm)
Height - Seated (Max) 0.532" (13.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Base Product Number CMF-RL
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 851235-CMF-RL10-0
Ultra Librarian 3D Model Ultra Librarian CMF-RL10-0 CAD Model

Description

The 851235-CMF-RL10-0 is a PTC resettable fuse designed for circuit protection.

  • Product Name: 851235-CMF-RL10-0
  • Manufacturer: Bourns Inc.
  • Series: CMF-RL
  • Package: Ceramic
  • Maximum Voltage Rating: 220V (600V Int)
  • Maximum Current Rating: 3A
  • Hold Current: 150mA
  • Trip Current: 300mA
  • Time to Trip: 450ms
  • Mounting: Through-Hole
  • Package Type: Radial, Disc
  • Product Status: Active
  • Approvals: UR
