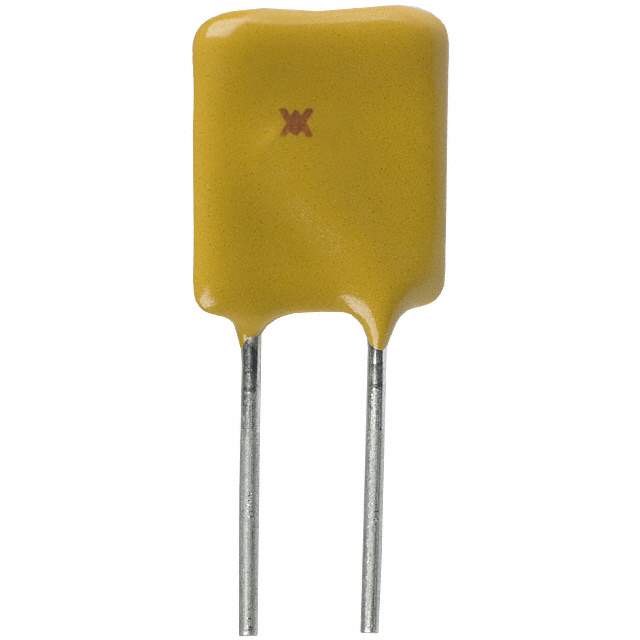

RUEF500-2 Real Image
Same model may have multiple batches, images only for reference.

RUEF500-2

Part No RUEF500-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 5A
Datasheet
RUEF500-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Max) 5A
Current - Trip (It) 10A
Time to Trip 14.5s
Resistance - Initial (Ri) (Min) 10 mOhm
Resistance - Post Trip (R1) (Max) 50 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.551" L x 0.120" W (14.00mm x 3.00mm)
Height - Seated (Max) 0.949" (24.10mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 117059-RUEF500-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RUEF500-2 CAD Model

Description

The RUEF500-2 is a polymeric fuse manufactured by Littelfuse Inc.

  • Voltage Rating: 30V
  • Maximum Current: 100A
  • Approvals: CQC, CSA, TUV, and UL
  • Mounting: Through hole technology
  • Time to Trip: 14.5s
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.551" L x 0.120" W (14.00mm x 3.00mm)
  • Resistance - Initial (Ri) (Min): 10 mOhm
  • Supply and Demand Status: Balanced
  • Availability: Available in a reel of 1000 units
