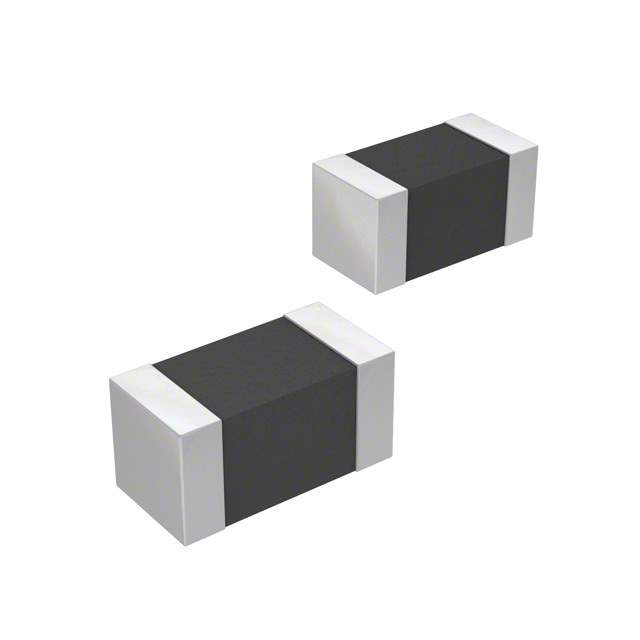

CM160808-8N2JL Real Image
Same model may have multiple batches, images only for reference.

CM160808-8N2JL

Part No CM160808-8N2JL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 8.2NH 400MA 280MOHM SM / 8.2 nH Unshielded Drum Core, Wirewound Inductor 400 mA 280mOhm Max 0603 (1608 Metric)
Datasheet
CM160808-8N2JL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CM160808
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Alumina
Inductance 8.2 nH
Tolerance ±5%
Current Rating (Amps) 400 mA
Shielding Unshielded
DC Resistance (DCR) 280mOhm Max
Q @ Freq 9 @ 100MHz
Frequency - Self Resonant 3.5GHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.94mm)
Base Product Number CM160808
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 3,000
Win Source Part Number 957943-CM160808-8N2JL
Ultra Librarian 3D Model Ultra Librarian CM160808-8N2JL CAD Model

Description

The 957943-CM160808-8N2JL is a fixed inductor component from the CM160808 series from Bourns Inc.

  • Series: CM160808
  • Inductor Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Inductance: 8.2 nH
  • Height - Seated (Max): 0.037" (0.94mm)
  • Standard Package: 3,000
  • Tolerance: ±5%
  • Core Material: Alumina
  • Q @ Freq: 9 @ 100MHz
  • Frequency - Self Resonant: 3.5GHz
  • DC Resistance (DCR): 280mOhm Max
  • Operating Temperature: -40°C to 100°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Current Rating: 400 mA
  • Inductance Frequency - Test: 100 MHz
