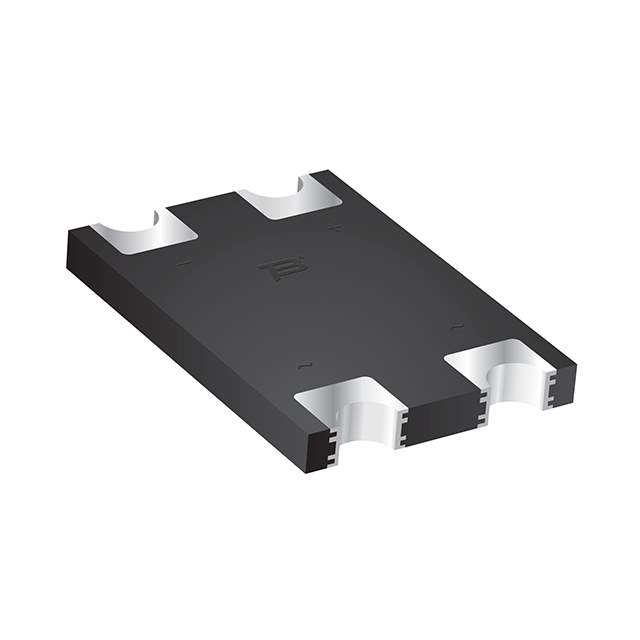

CD-MBL206SL Real Image
Same model may have multiple batches, images only for reference.

CD-MBL206SL

Part No CD-MBL206SL
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 2A / Surface Mount Bridge Rectifier Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Maximum) at If 960mV at 2A
Temperature Range - Operating -55°C ~ 175°C
Mounting Style SMD
Manufacturer Package Chip, Concave Terminals
Part Number Series CD-MBL
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804855-CD-MBL206SL
Ultra Librarian 3D Model Ultra Librarian CD-MBL206SL CAD Model

Description

The Bourns Inc. single-phase diode is a standard technology component that is designed for a temperature range of -55°C to 175°C.

  • Mounting: SMD
  • Peak Reverse Voltage: 600V
  • Current Average Rectified (Io): 2A
  • Voltage Forward (Vf): 960mV @ 2A
  • Series: CD-MBL
  • Package: Chip, concave terminals
  • Supply and Demand Status: Balanced
