Same model may have multiple batches, images only for reference.

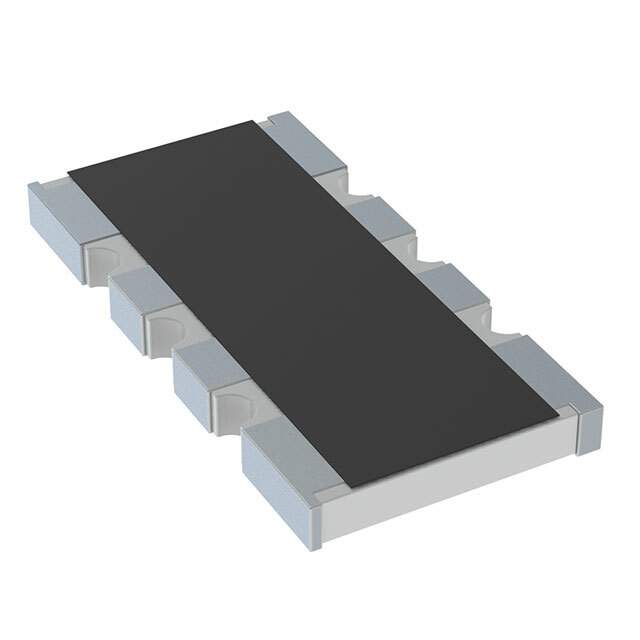

CAY16-220J4LF Real Image
Same model may have multiple batches, images only for reference.

CAY16-220J4LF

Part No CAY16-220J4LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 22 OHM 1206  /  22 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet
CAY16-220J4LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series CAY16
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 22
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number CAY16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names CAY16-220J4LFDKR,CAY16-220J4LFCT,CAY16220J4LF,CAY16-220J4LF-ND,CAY16-220J4LFTR
Standard Package 5,000
Win Source Part Number 980260-CAY16-220J4LF
Ultra Librarian 3D Model Ultra Librarian CAY16-220J4LF CAD Model

Description

The CAY16-220J4LF is a resistor network array from Bourns Inc.

  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Resistors: Four isolated resistors
  • Resistance: 22 ohms
  • Power per Element: 62.5mW
  • Package: Tape and reel
  • Pins: 8
  • Package/Case: 1206 (3216 Metric), Convex, Long Side Terminals
