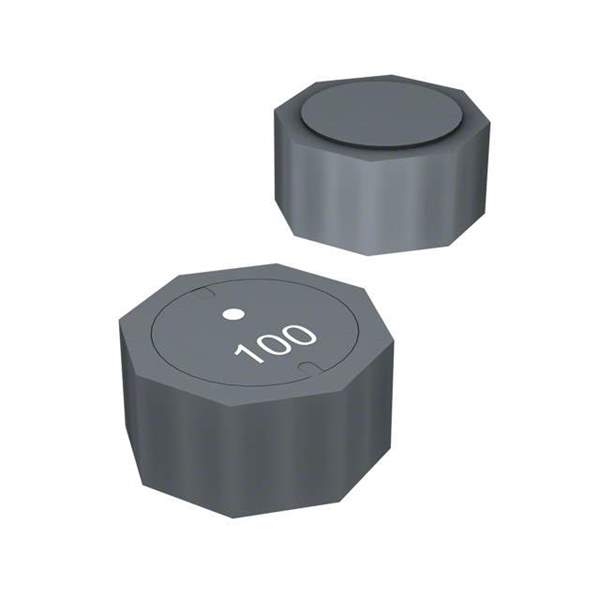

SRU1048-100Y Real Image
Same model may have multiple batches, images only for reference.

SRU1048-100Y

Part No SRU1048-100Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1048-100Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1048
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±30%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 3.7A
Shielding Shielded
DC Resistance (DCR) 18.5mOhm
Q @ Freq 26 @ 7.96MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRU1048
Other Names SRU1048100Y,-SRU1048-100Y,-SRU1048-100YTR,-SRU1048-100YCT,SRU1048-100YTR,SRU1048-100YCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273138-SRU1048-100Y
Ultra Librarian 3D Model Ultra Librarian SRU1048-100Y CAD Model

Description

The SRU1048-100Y is a drum core, wirewound fixed inductor.

  • Manufacturer: Bourns Inc.
  • Shielding: Shielding Feature
  • Inductance: 10 µH
  • Tolerance: ±30%
  • DC Resistance: 18.5mOhm
  • Current Rating: 4.5A (Maximum)
  • Frequency Self-Resonant: 16MHz
  • Package: Non-Standard
  • Mounting: SMD (SMT)
  • AEC-Q200: Rated
  • Temperature Range: -40°C to 125°C
  • Height: 0.201 inches (5.10mm)
  • Material: Ferrite
  • Packaging: Tape and Reel
  • Standard Package: 600
