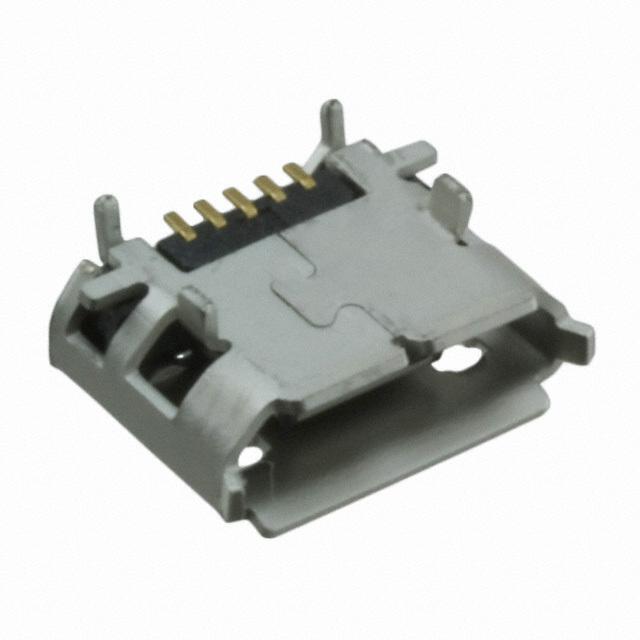

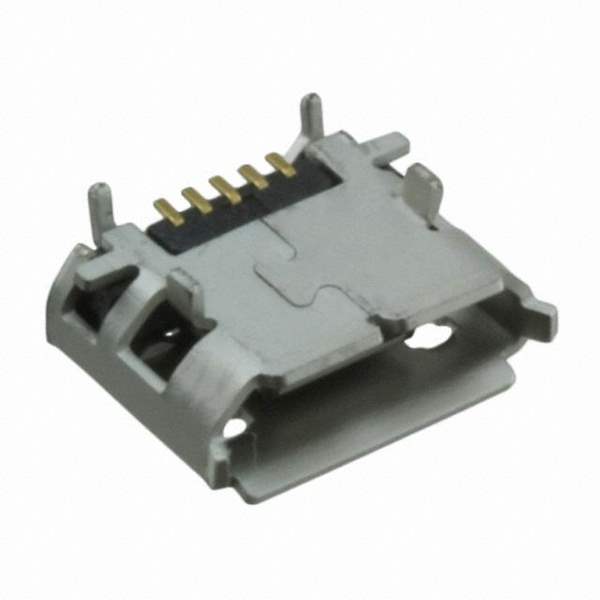

10103594-0001LF Amphenol FCI 10103594-0001LF Real Image
Same model may have multiple batches, images only for reference.
10103594-0001LF Amphenol FCI 10103594-0001LF Real Image
10103594-0001LF Amphenol FCI 10103594-0001LF Real Image
Same model may have multiple batches, images only for reference.

10103594-0001LF

Part No 10103594-0001LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT STD MICRO USB TYPE B
Datasheet
10103594-0001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C to 80°C
Number of Ports 1
Current Rating 1.8A per Contact
Voltage Rating 100VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 1000817-10103594-0001LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10103594-0001LF CAD Model

Description

The Amphenol FCI USB micro B connector is a high-quality component designed for use in a variety of electronic devices.

  • Contacts: Five
  • Voltage: Up to 100VAC
  • Current: 1.8A per contact
  • Mounting: Surface mount or through-hole
  • Mounting Feature: Horizontal
  • Material: Steel and stainless steel
  • Material Flammability Rating: UL94 V-0
  • USB: 2
  • Suitable for: Smartphones, tablets, and other portable devices
