Same model may have multiple batches, images only for reference.

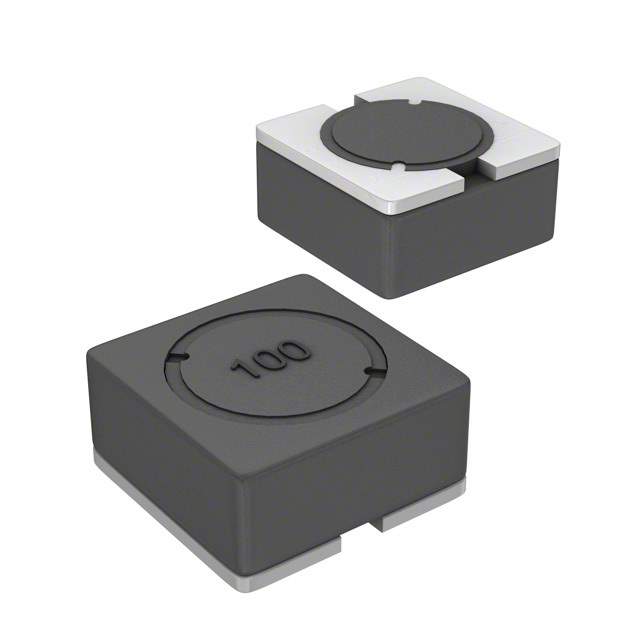

SRR5028-270Y Real Image
Same model may have multiple batches, images only for reference.

SRR5028-270Y

Part No SRR5028-270Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 27UH 1.05A 160MOHM SMD / 27 µH Shielded Drum Core, Wirewound Inductor 1.05 A 160mOhm Max Nonstandard
Datasheet
SRR5028-270Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±30%
Current Rating (Amps) 1.05 A
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR5028
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRR5028-270YDKR,-SRR5028-270Y,SRR5028270Y,SRR5028-270YCT,-SRR5028-270Y-ND,-SRR5028-270YCT,SRR5028-270YTR,-SRR5028-270YTR,SRR5028-270Y-ND
Standard Package 400
Win Source Part Number 1327788-SRR5028-270Y
Ultra Librarian 3D Model Ultra Librarian SRR5028-270Y CAD Model

Description

The SRR5028-270Y is a fixed inductor from Bourns Inc.

  • Type: Drum Core, Wirewound
  • Shielding: Yes
  • Mounting: Surface Mountable
  • Packaging: Reel
  • Standard Package: 400
  • Size/Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Seated Height: 0.118" (3.00mm)
  • Inductance: 27µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 10 @ 2.52MHz
  • Self-Resonant Frequency: 17MHz
  • DC Resistance (DCR): 160mOhm Max
  • Operating Temperature: -40°C to 125°C
  • REACH Unaffected: Yes
