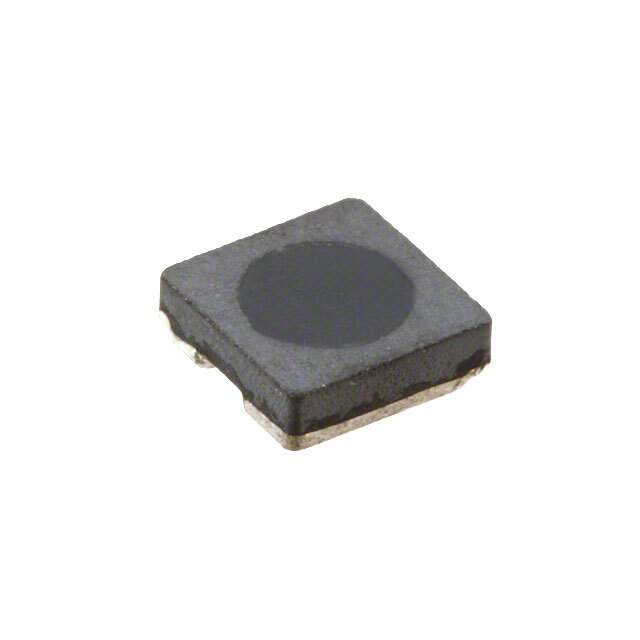

Same model may have multiple batches, images only for reference.

SRR3011-680YL

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR3011-680YL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR3011-680YL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR3011
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±30%
Current Rating (Amps)	220 mA
Current - Saturation (Isat)	180mA
Shielding	Shielded
DC Resistance (DCR)	2.25Ohm Max
Q @ Freq	14 @ 2.52MHz
Frequency - Self Resonant	15MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max)	0.051" (1.30mm)
Base Product Number	SRR3011
Standard Package	1,200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1273350-SRR3011-680YL
Ultra Librarian 3D Model	Ultra Librarian SRR3011-680YL CAD Model

Alternative Products

Description

The SRR3011 series from Bourns Inc. is a shielded drum core, wirewound inductor.

Inductance: 68 µH
Tolerance: ±30%
Height - Seated (Max): 0.051" (1.30mm)
Package: Tape & Reel (TR)
Q @ Freq: 14 @ 2.52MHz
Frequency - Self Resonant: 15MHz
DC Resistance (DCR): 2.25Ohm Max
Operating Temperature Range: -40°C ~ 125°C
Mounting: SMD (SMT)
Current Rating (Amps): 220 mA
Dimension: 0.150" L x 0.150" W (3.80mm x 3.80mm)
Core Material: Ferrite
ECCN: EAR99 compliant
