Same model may have multiple batches, images only for reference.

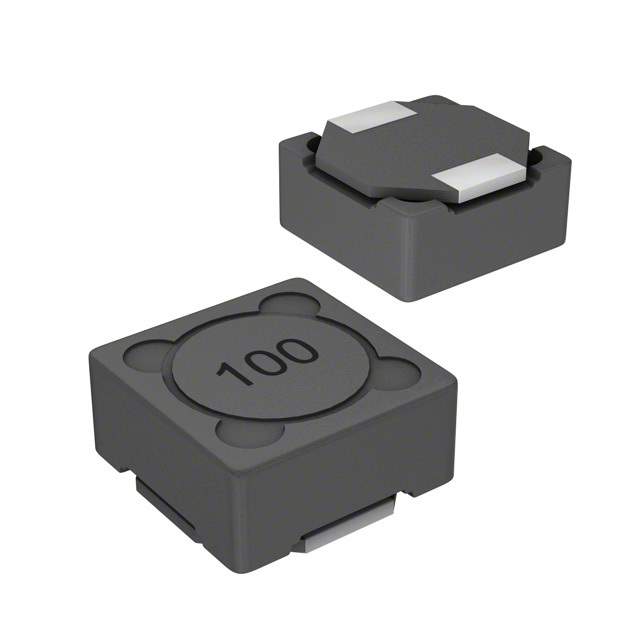

SRR1260-121K Real Image
Same model may have multiple batches, images only for reference.

SRR1260-121K

Part No SRR1260-121K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1260-121K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1260
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 120 µH
Tolerance ±10%
Current Rating (Amps) 1.65 A
Current - Saturation (Isat) 1.65A
Shielding Shielded
DC Resistance (DCR) 210mOhm Max
Q @ Freq 26 @ 796kHz
Frequency - Self Resonant 5.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1260
Other Names SRR1260-121KCT,-SRR1260-121K,SRR1260-121KTR,SRR1260121K,SRR1260-121KDKR,-SRR1260-121KCT,-SRR1260-121KTR,-SRR1260-121K,SRR1260-121K
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273444-SRR1260-121K
Ultra Librarian 3D Model Ultra Librarian SRR1260-121K CAD Model

Description

The Bourns SRR1260-121K is a shielded fixed inductor with a 120 µH inductance.

  • Manufacturer: Bourns
  • Tolerance: ±10%
  • Q factor: 26 @ 796 kHz
  • DC Resistance: 210 mOhm max
  • Current Rating: 1.65 A
  • Mounting Type: SMD (SMT)
  • Core Material: Ferrite
  • Frequency of Self-Resonant: 5.5 MHz
  • Operating Temperature Range: -40°C to 125°C
  • Package Dimensions: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height: 0.256" (6.50mm)
