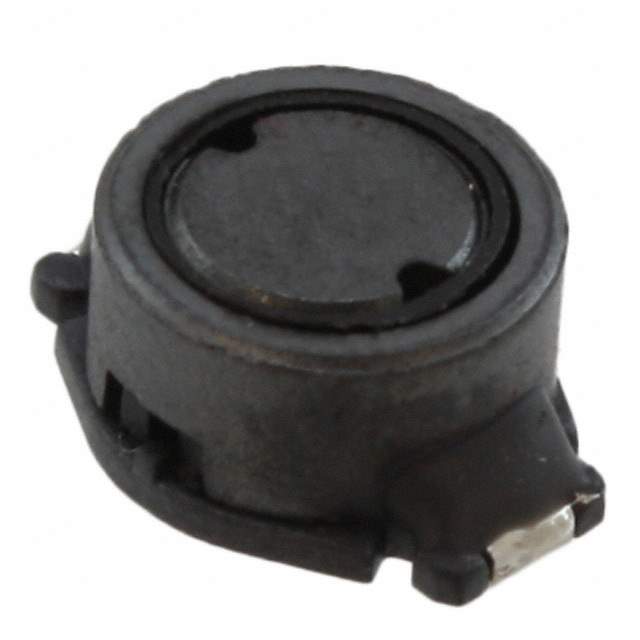

SRR0805-151K

Part No SRR0805-151K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0805
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 400 mA
Current - Saturation (Isat) 640mA
Shielding Shielded
DC Resistance (DCR) 900mOhm Max
Q @ Freq 39 @ 796kHz
Frequency - Self Resonant 6.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0805
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273692-SRR0805-151K
Ultra Librarian 3D Model Ultra Librarian SRR0805-151K CAD Model

Description

The SRR0805 series of inductors is a drum core, wirewound type inductor that is packaged in tape and reel format.

  • Inductance: 150 µH
  • Tolerance: ±10%
  • Core Material: ferrite
  • Q Value: 39 @ 796kHz
  • Self-Resonant Frequency: 6.5MHz
  • DC Resistance (DCR): 900mOhm max
  • Current Rating: 400mA
  • Operating Temperature Range: -40°C to 125°C
