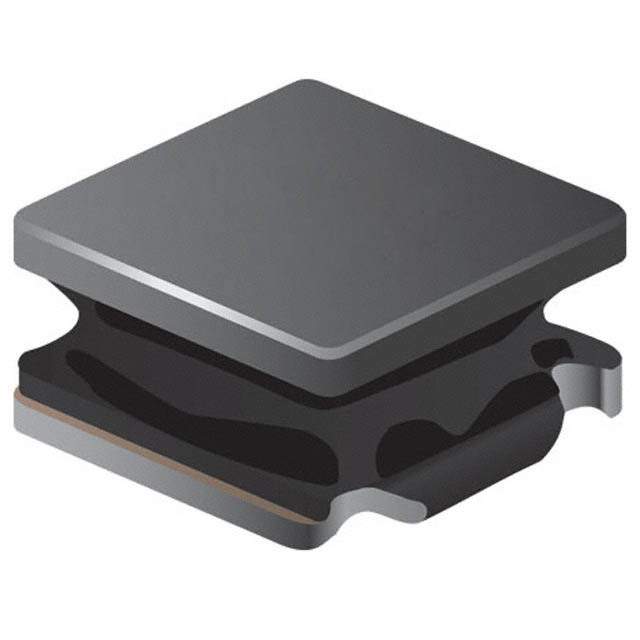

SRN3015-330M Real Image
Same model may have multiple batches, images only for reference.

SRN3015-330M

Part No SRN3015-330M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 500MA 959MOHM SMD / 33 µH Semi-Shielded Drum Core, Wirewound Inductor 500 mA 959mOhm Max Nonstandard
Datasheet
SRN3015-330M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 460mA
Shielding Semi-Shielded
DC Resistance (DCR) 959mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRN3015
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRN3015330M,SRN3015-330MCT,SRN3015-330MTR,SRN3015-330MDKR
Standard Package 2,000
Win Source Part Number 1329836-SRN3015-330M
Ultra Librarian 3D Model Ultra Librarian SRN3015-330M CAD Model

Description

The Bourns SRN3015-330M is a semi-shielded fixed inductor that has an inductance of 33μH with a tolerance of ±20%.

  • Inductance: 33μH
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 500mA
  • Current Saturation: 460mA
  • Q Value: 20 @ 2.52MHz
  • Series: SRN3015
  • ROHS3 Compliant: Yes
