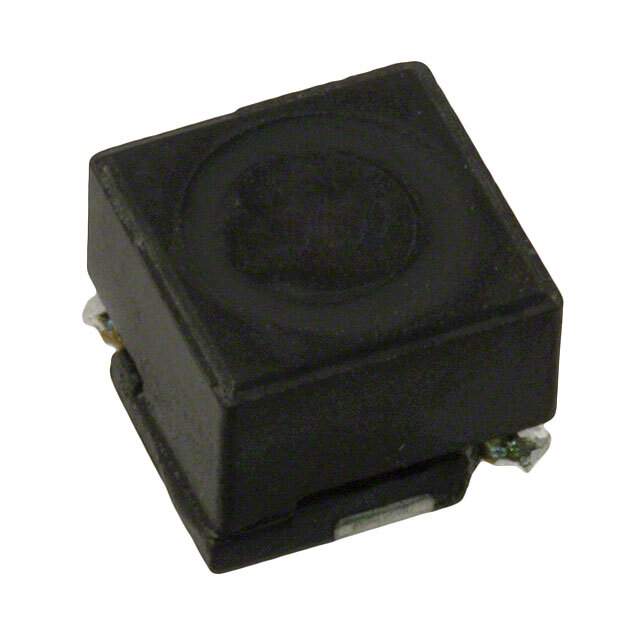

SRR0604-471KL Real Image
Same model may have multiple batches, images only for reference.

SRR0604-471KL

Part No SRR0604-471KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0604-471KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0604
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 180 mA
Current - Saturation (Isat) 220mA
Shielding Shielded
DC Resistance (DCR) 3.3Ohm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 6.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
Other Names SRR0604471KL,SRR0604-471KL,SRR0604-471KLCT,SRR0604-471KLTR,SRR0604-471KLDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273755-SRR0604-471KL
Ultra Librarian 3D Model Ultra Librarian SRR0604-471KL CAD Model

Description

The Bourns Inc. SRR0604-471KL is a drum core, wirewound inductor with a shielding package.

  • Inductance: 470 µH
  • Tolerance: ±10%
  • Q @ Freq: 18 @ 796kHz
  • Frequency Self-Resonant: 6.5MHz
  • DC Resistance (DCR): 3.3Ohm Max
  • Current Rating (Amps): 180 mA
  • Mounting Style: semi-shielded
  • Applications: fixed inductors
  • Package: nonstandard, corner terminals
  • Dimension: 0.256" L x 0.256" W (6.50mm x 6.50mm)
  • Availability: in the open market
  • REACH: unaffected
