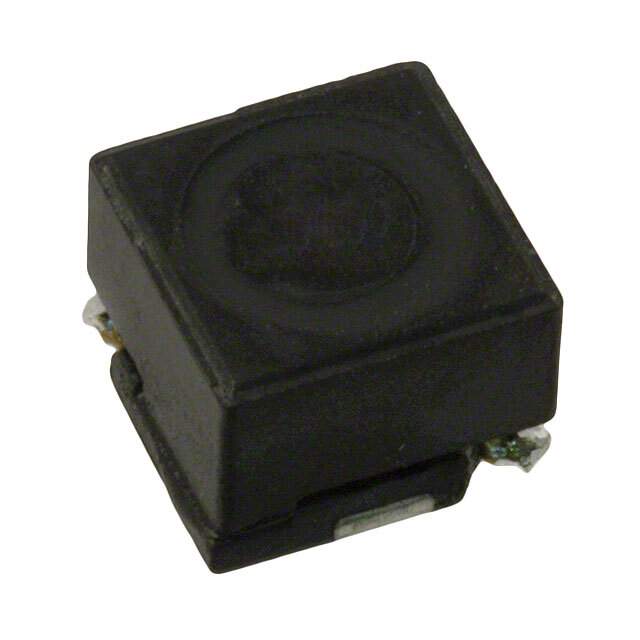

SRR0604-151KL Real Image
Same model may have multiple batches, images only for reference.

SRR0604-151KL

Part No SRR0604-151KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0604-151KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0604
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 470mA
Shielding Shielded
DC Resistance (DCR) 1Ohm Max
Q @ Freq 21 @ 796kHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
Other Names -SRR0604-151KLTR,SRR0604-151KLCT,SRR0604-151KLTR,SRR0604151KL,-SRR0604-151KL,-SRR0604-151KLCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273752-SRR0604-151KL
Ultra Librarian 3D Model Ultra Librarian SRR0604-151KL CAD Model

Description

The SRR0604-151KL is a fixed inductor manufactured by Bourns Inc.

  • Component: high-quality electronic component designed for various applications
  • Type: drum core, wirewound component that is shielded
  • Inductance: 150 μH
  • Tolerance: ±10%
  • Standard Package: 1,000
  • Component: SMD (SMT) component
  • Height: 0.189 inches (4.80mm)
  • Package/Case: nonstandard, corner terminal
  • Current Rating: 300 mA
  • DC Resistance: 1 Ohm Max
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.4000
  • Also Known As: SRR0604-151KLTR, SRR0604-151KLCT, SRR0604-151KLTR, SRR0604151KL, -SRR0604-151KL, and -SRR0604-151KLCT
