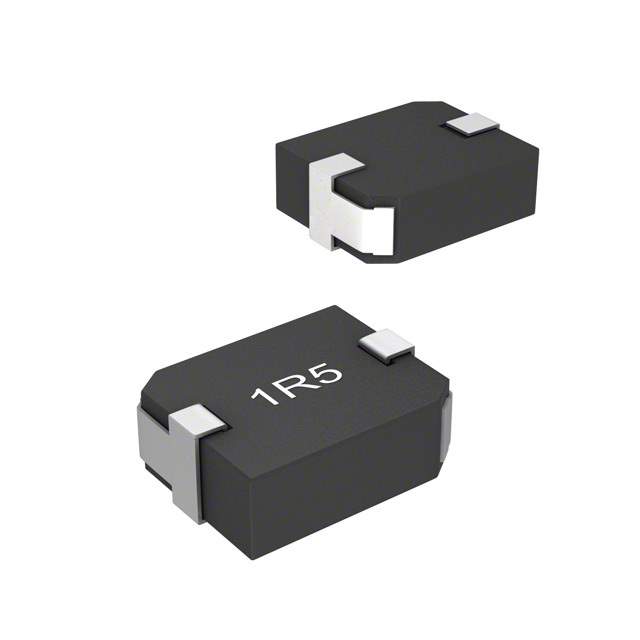

SRP7030-R15M Real Image
Same model may have multiple batches, images only for reference.

SRP7030-R15M

Part No SRP7030-R15M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7030-R15M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7030
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron
Inductance 150 nH
Tolerance ±20%
Current Rating (Amps) 26 A
Current - Saturation (Isat) 38A
Shielding Shielded
DC Resistance (DCR) 2.5mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.126" (3.20mm)
Base Product Number SRP7030
Other Names SRP7030R15M,SRP7030-R15M,SRP7030-R15MCT,SRP7030-R15MTR,SRP7030-R15MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273794-SRP7030-R15M
Ultra Librarian 3D Model Ultra Librarian SRP7030-R15M CAD Model

Description

The SRP7030-R15M is a drum core, wirewound inductor that is part of the SRP7030 series.

  • Shielding: Shielded
  • Inductance: 150 nH
  • Tolerance: ±20%
  • DC Resistance: 2.5mOhm Max
  • Current Rating: 26 A
  • Height: 0.126" (3.20mm)
  • Dimension: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Mounting: SMD (SMT)
  • Package/Case: Nonstandard
  • Operating Temperature: -55°C ~ 150°C
  • MSL Level: Unlimited
  • REACH: Unaffected
