Same model may have multiple batches, images only for reference.

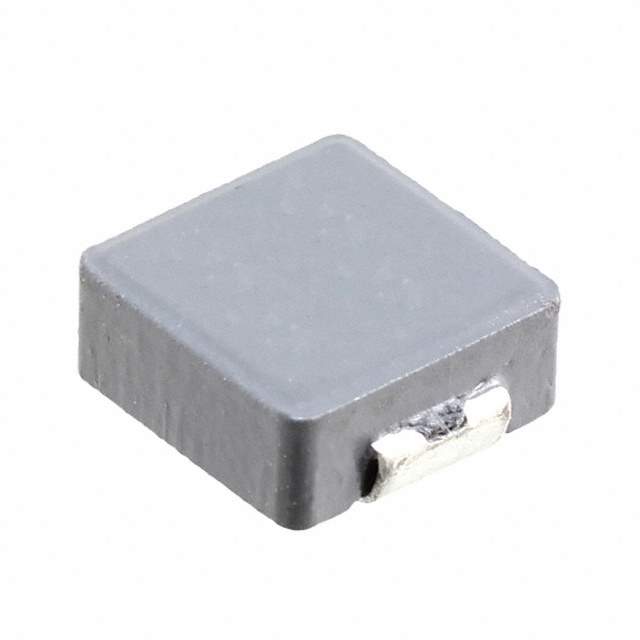

SRP7028C-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP7028C-4R7M

Part No SRP7028C-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7028C-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 40mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 21MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names SRP7028C-4R7MDKR,SRP7028C-4R7MTR,SRP7028C-4R7MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273799-SRP7028C-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP7028C-4R7M CAD Model

Description

The SRP7028C series from Bourns Inc. is a shielded fixed inductor designed for use in various applications such as filtering, power supplies, and DC/DC converters.

  • Type: Drum core, wirewound
  • Material: Metal Core
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance: 40mOhm max
  • Q @ Freq: 15 @ 100kHz
  • Frequency-Self-Resonant: 21MHz
  • Standard Package: 1,000
  • Package/Case: Non-standard
  • Current Rating (Amps): 5.5 A
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.280" L x 0.260" W (7.10mm x 6.60mm)
