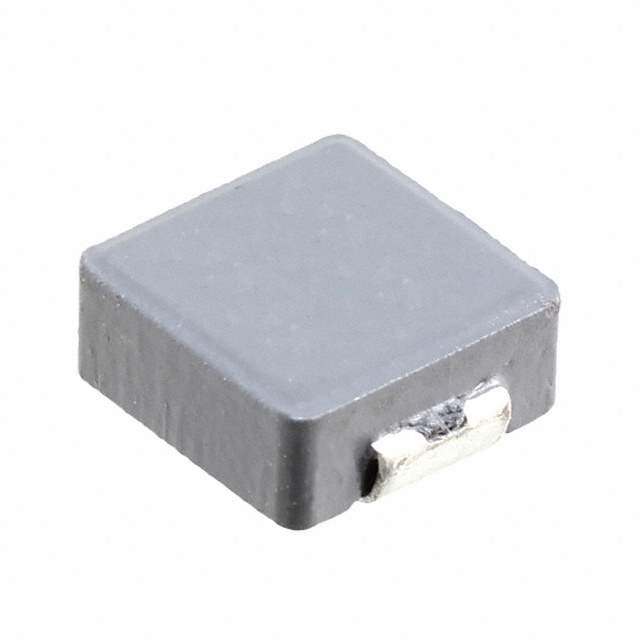

Same model may have multiple batches, images only for reference.

SRP7028A-R15Y

Name: SRP7028A-R15Y
Brand: Bourns Inc.
SKU: 1273811
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP7028A-R15Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP7028A-R15Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP7028A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	150 nH
Tolerance	±30%
Current Rating (Amps)	27 A
Current - Saturation (Isat)	45A
Shielding	Shielded
DC Resistance (DCR)	1.9mOhm Max
Q @ Freq	5 @ 100kHz
Frequency - Self Resonant	220MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRP7028A
Other Names	SRP7028A-R15YDKR,SRP7028A-R15YTR,SRP7028A-R15YCT
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273811-SRP7028A-R15Y
Ultra Librarian 3D Model	Ultra Librarian SRP7028A-R15Y CAD Model

Alternative Products

Description

The SRP7028A-R15Y is a shielded drum core wirewound inductor from Bourns Inc.

Inductance: 150 nH
Tolerance: ±30%
Current: 27 A
DC Resistance: 1.9 mOhm maximum
Core Material: Carbonyl powder
Self-Resonant Frequency: 220 MHz
Package: Tape and reel
Height: 0.118 inches (3.00 mm)
Temperature Range: -40°C to 150°C
AEC-Q200 Compliant: Yes
