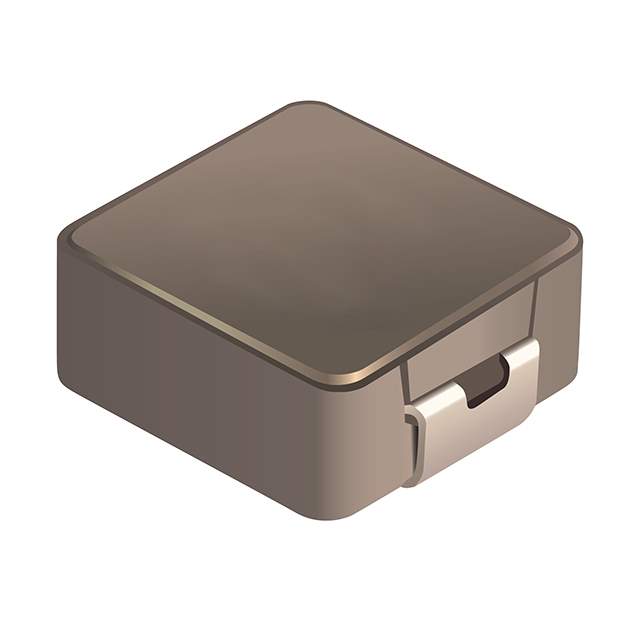

Same model may have multiple batches, images only for reference.

SRP6030VA-100M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP6030VA-100M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP6030VA-100M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP6030VA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Metal
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	5 A
Current - Saturation (Isat)	5A
Shielding	Shielded
DC Resistance (DCR)	68mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	12MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 180°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
Other Names	118-SRP6030VA-100MTR,118-SRP6030VA-100MDKR,118-SRP6030VA-100MCT
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1273832-SRP6030VA-100M
Ultra Librarian 3D Model	Ultra Librarian SRP6030VA-100M CAD Model

Alternative Products

Description

The Bourns Inc. SRP6030VA series drum core, wirewound inductor is designed to store energy in a magnetic field.

Inductance: 10 µH
Maximum Current: 5A
Shielded: Yes
Mounting: SMD (SMT) technology
Q @ Freq: 10 @ 100kHz
DC Resistance (DCR): 68mOhm Max
Frequency - Self-Resonant: 12MHz
Tolerance: ±20%
Temperature Range: -55°C to 180°C
Dimension: 0.280" L x 0.260" W (7.10mm x 6.60mm)
ECCN: EAR99
REACH: Unaffected
