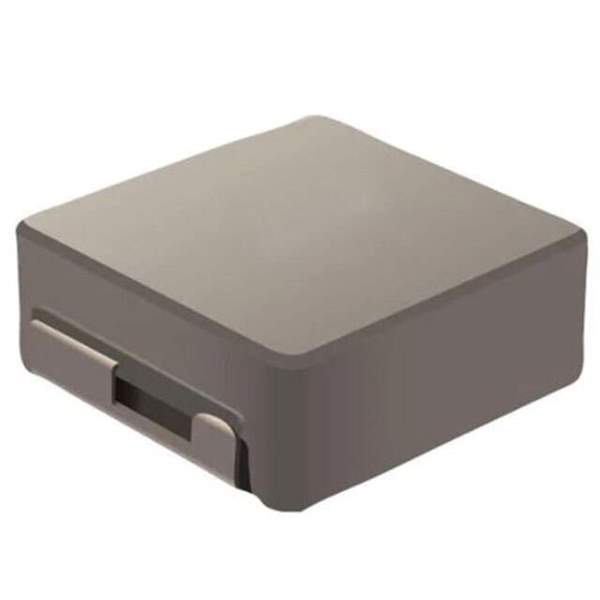

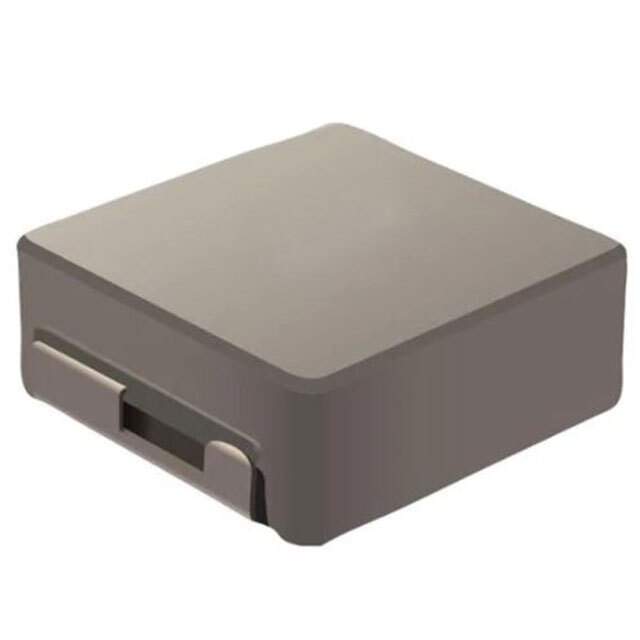

Same model may have multiple batches, images only for reference.

SRP1770C-150M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1770C-150M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1770C-150M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1770C
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Metal
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	14 A
Current - Saturation (Isat)	23A
Shielding	Shielded
DC Resistance (DCR)	19.5mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	10MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.701" L x 0.665" W (17.80mm x 16.90mm)
Height - Seated (Max)	0.276" (7.00mm)
Other Names	SRP1770C-150MDKR,SRP1770C-150MCT,SRP1770C-150MTR
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1274020-SRP1770C-150M
Ultra Librarian 3D Model	Ultra Librarian SRP1770C-150M CAD Model

Alternative Products

Description

The SRP1770C-150M inductor from Bourns Inc. is a shielded, wirewound drum core type inductor.

Inductance: 15 µH
Tolerance: ±20%
Maximum DC Resistance: 19.5 mOhm
Height (Seated): 0.276" (7.00 mm)
Packaging: Tape and reel
Core Material: Metal
Q Value: 20 @ 100 kHz
Current Rating: 14 A
Current Saturation Rating: 23 A
Temperature Range: -40°C to 125°C
REACH: Unaffected
ECCN: EAR99
HTSUS: 8504.50.8000
Package Dimensions: 0.701" L x 0.665" W (17.80mm x 16.90mm)
Series: SRP1770C
Standard Package Quantity: 200
