Same model may have multiple batches, images only for reference.

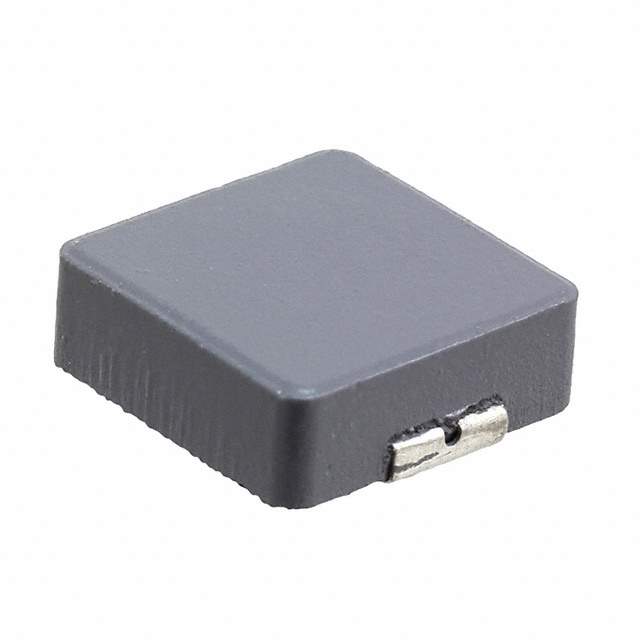

SRP1245A-R68M Real Image
Same model may have multiple batches, images only for reference.

SRP1245A-R68M

Part No SRP1245A-R68M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1245A-R68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1245A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 34 A
Current - Saturation (Isat) 54A
Shielding Shielded
DC Resistance (DCR) 1.7mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 50MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP1245A
Other Names SRP1245A-R68MTR,SRP1245A-R68MDKR,SRP1245A-R68MCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274074-SRP1245A-R68M
Ultra Librarian 3D Model Ultra Librarian SRP1245A-R68M CAD Model

Description

The SRP1245A series is a drum core, wirewound type of fixed inductor that is shielded with an inductance of 680 nH and a tolerance of ±20%.

  • Height Seated: 0.197" (5.00mm)
  • DC Resistance: 1.7mOhm Max
  • Package: Tape and Reel
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Material Core: Carbonyl Powder
  • Temperature Range: -40°C ~ 150°C
  • ECCN: EAR99
  • Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
  • Current Rating: 34A
  • Inductance Frequency Test: 100 kHz
