Same model may have multiple batches, images only for reference.

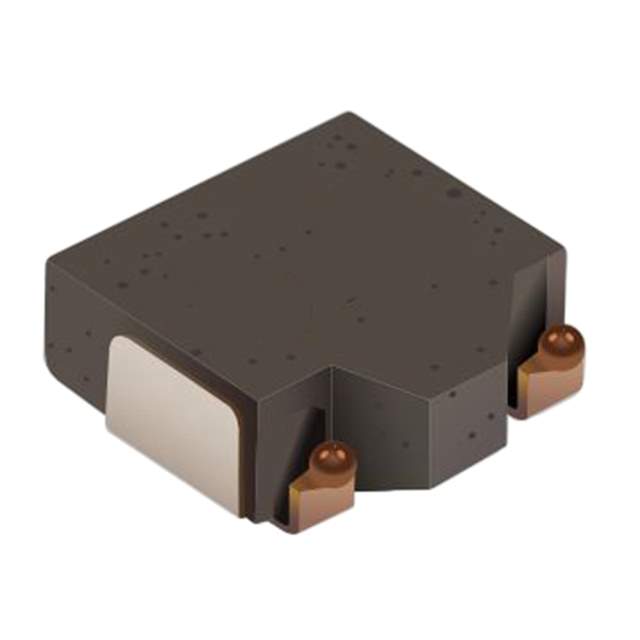

SRP0412-2R2K Real Image
Same model may have multiple batches, images only for reference.

SRP0412-2R2K

Part No SRP0412-2R2K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0412
Package Tape & Reel
Material - Core Metal
Inductance 2.2 µH
Tolerance ±10%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 5.2A
Shielding Shielded
DC Resistance (DCR) 57.5mOhm Max
Q @ Freq 37 @ 7.96MHz
Frequency - Self Resonant 33MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.047" (1.20mm)
Other Names 118-SRP0412-2R2KCT,118-SRP0412-2R2KDKR,118-SRP0412-2R2KTR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274225-SRP0412-2R2K
Ultra Librarian 3D Model Ultra Librarian SRP0412-2R2K CAD Model

Description

The Bourns SRP0412-2R2K is a shielded fixed inductor that has a tape and reel package.

  • Inductance: 2.2 µH
  • Tolerance: ±10%
  • Height: Seated at a maximum of 0.047 inches (1.20mm)
  • Dimension: 0.173 inches L x 0.161 inches W (4.40mm x 4.10mm)
  • Package: In tape and reel form with 4,000 pieces
  • Supplier Device Package: Non-standard
  • Material: Used in the core is metal
  • DC Resistance (DCR): 57.5mOhm Max
  • Current Rating: 4.1 A
  • Temperature Range: -40°C to 125°C
