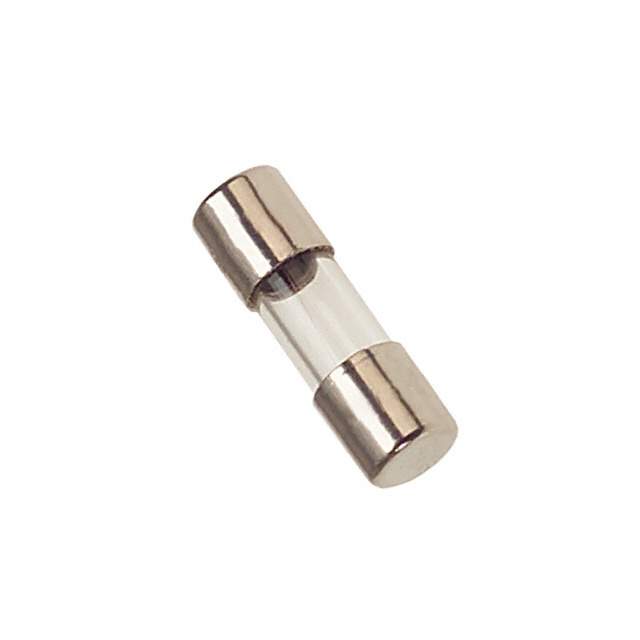

0225004.HXUP Real Image
Same model may have multiple batches, images only for reference.

0225004.HXUP

Part No 0225004.HXUP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 4A 125VAC 2AG / 4 A 125 V AC DC Fuse Cartridge, Glass Holder 2AG, 5mm x 15mm
Datasheet
0225004.HXUP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 4 A
Voltage Rating - AC 125 V
Response Time Fast Blow
Case / Package 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 100A
Melting I2t 9.4
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.024 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Part Number 0225004HXUP,225004,F2455,-0225004.HXUP,225004P,0225004.HXP,225004.P
Standard Package 100
Win Source Part Number 1334660-0225004.HXUP
Ultra Librarian 3D Model Ultra Librarian 0225004.HXUP CAD Model

Description

The Littelfuse Inc. 0225004.HXUP is a glass cartridge fuse with a current rating of 4A and a voltage rating of 125V AC.

  • Current Rating: 4A
  • Voltage Rating: 125V AC
  • Response Time: fast-blow
  • Breaking Capacity: 100A @ rated voltage
  • DC Cold Resistance: 0.024 Ohms
  • Melting I2t: 9.4
  • Mounting Type: Holder
  • Size: 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
  • Operating Temperature: -55°C to 125°C
  • Package: 2AG, 5mm x 15mm
  • Approvals: CE, CSA, PSE, UL approved
  • ROHS3 Compliant: Yes
