Same model may have multiple batches, images only for reference.

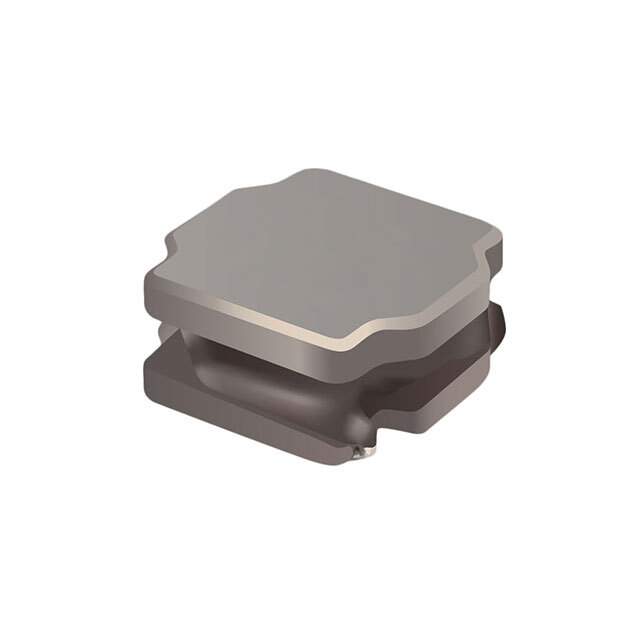

SRN8040TA-2R2Y Real Image
Same model may have multiple batches, images only for reference.

SRN8040TA-2R2Y

Part No SRN8040TA-2R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN8040TA-2R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN8040TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 7.4 A
Current - Saturation (Isat) 9.8A
Shielding Semi-Shielded
DC Resistance (DCR) 11.5mOhm
Q @ Freq 15 @ 1MHz
Frequency - Self Resonant 57MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN8040TA
Other Names SRN8040TA-2R2YDKR,SRN8040TA-2R2YCT,SRN8040TA-2R2YTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274260-SRN8040TA-2R2Y
Ultra Librarian 3D Model Ultra Librarian SRN8040TA-2R2Y CAD Model

Description

The SRN8040TA-2R2Y is a fixed inductor from Bourns Inc. that has a semi-shielded package of tape and reel.

  • Core Material: Ferrite
  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • Q @ Freq: 15 @ 1MHz
  • Frequency Self-Resonant: 57MHz
  • DC Resistance (DCR): 11.5mOhm
  • Current Rating: 7.4A
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C ~ 125°C
  • Dimensions: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
