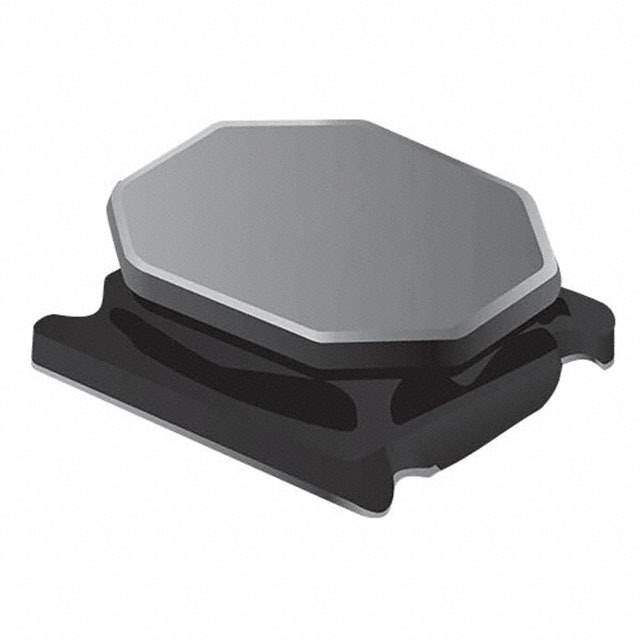

SRN5020-2R2Y Real Image
Same model may have multiple batches, images only for reference.

SRN5020-2R2Y

Part No SRN5020-2R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN5020
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 2.9 A
Current - Saturation (Isat) 2.9A
Shielding Semi-Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 11 @ 7.96MHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRN5020
Other Names SRN5020-2R2YTR,SRN50202R2Y,SRN5020-2R2YCT,SRN5020-2R2YDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274314-SRN5020-2R2Y
Ultra Librarian 3D Model Ultra Librarian SRN5020-2R2Y CAD Model

Description

The SRN5020-2R2Y is a drum core, wirewound inductor manufactured by Bourns Inc.

  • Shielding: Semi-shielded
  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • Package Type: Tape and reel
  • Package: Standard package of 2,000
  • Height: 0.079" (2.00mm)
  • Core Material: Ferrite
  • Q @ Freq: 11 @ 7.96MHz
  • Frequency: 50MHz Self-Resonant
  • DC Resistance: 42mOhm Max
  • Current Rating: 2.9 A
  • Operating Temperature Range: -40°C ~ 125°C
  • Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
