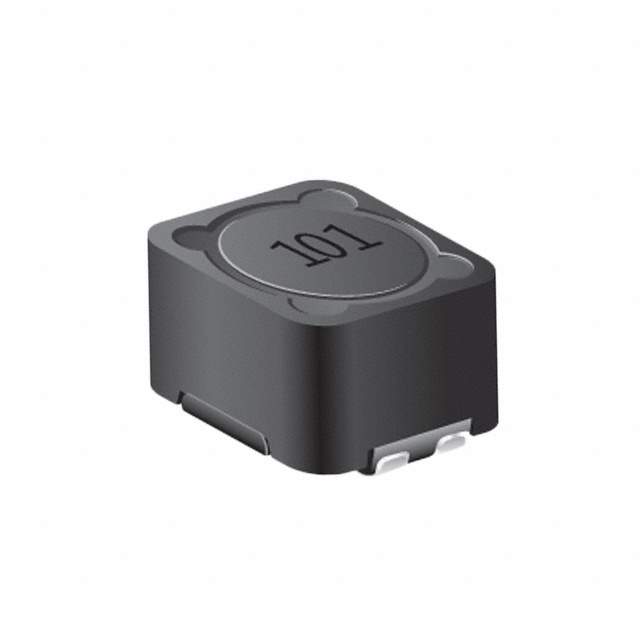

The SRF1280A-330M is an inductor coil array signal transformer manufactured by Bourns Inc.

• Series: SRF1280A
• Package: Tape & Reel
• Shielding: Shielded
• Standard Package: 400
• Mounting Type: SMD (SMT)
• Tolerance: ±20%
• Ratings: AEC-Q200
• Height: 0.315" (8.00mm)
• Number of Coils: 2
• Inductance (Series): 132 μH
• Inductance (Parallel): 33 μH
• Current Rating (Parallel): 3.23 A
• Current Rating (Series): 1.61 A
• Current Saturation (Parallel): 6.22 A
• Current Saturation (Series): 3.11 A
• DC Resistance (DCR) (Parallel): 66.4mOhm Max
• DC Resistance (DCR) (Series): 265mOhm Max
• Package/Case: Nonstandard
• Operating Temperature: -40°C ~ 125°C
• Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
