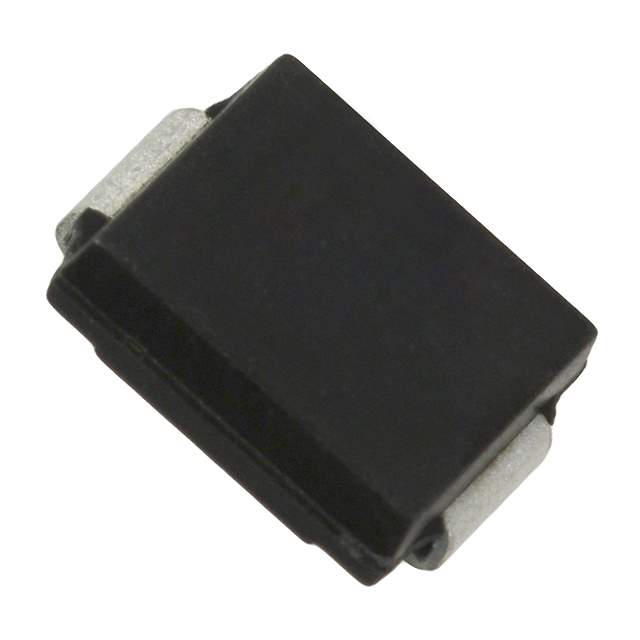

SMLJ78A Real Image
Same model may have multiple batches, images only for reference.

SMLJ78A

Part No SMLJ78A
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Datasheet
SMLJ78A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series SMLJ
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 78V
Voltage - Breakdown (Min) 86.7V
Voltage - Clamping (Max) @ Ipp 126V
Current - Peak Pulse (10/1000µs) 22.8A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Base Product Number SMLJ78
Other Names 2266-SMLJ78A,SMLJ78ABTR,SMLJ78ABCT,SMLJ78ADKR,SMLJ78ACT,SMLJ78ADKR,SMLJ78ACT,SMLJ78ABDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1301117-SMLJ78A
Ultra Librarian 3D Model Ultra Librarian SMLJ78A CAD Model

Description

The SMLJ78A TVS diode from Bourns Inc. is a high-quality Zener type component designed for use in various applications in the electronics industry.

  • Voltage - Reverse Standoff: 78V
  • Voltage - Breakdown: 86.7V
  • Voltage - Clamping: 126V @ Ipp
  • Package: SMC
  • Case: DO-214AB
  • Mounting: SMD (SMT) technology
  • Power - Peak Pulse: 3000W (3kW)
  • Current - Peak Pulse: 22.8A
  • Operating Temperature: -55°C to 150°C (TJ)
  • REACH: Affected
