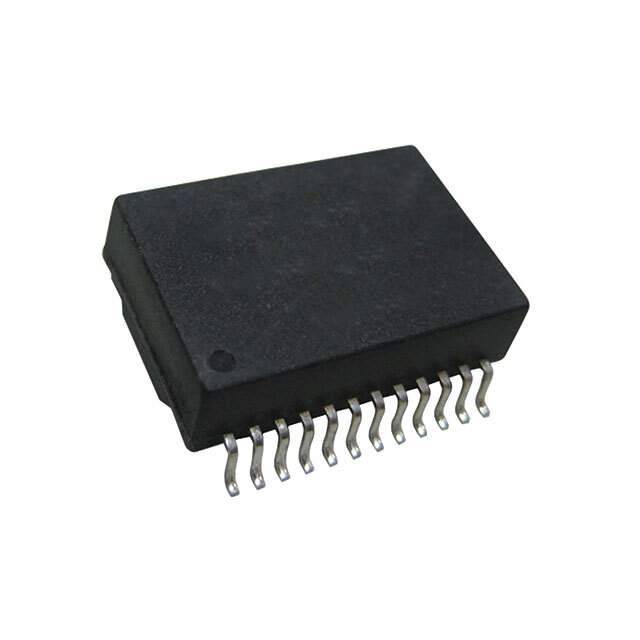

SM51625EL Real Image
Same model may have multiple batches, images only for reference.

SM51625EL

Part No SM51625EL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description XFRMR LAN POE+ 1.2A 24SMD / 10µH LAN Pulse Transformer 1:1 Surface Mount
Datasheet
SM51625EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series SM
Package Tape & Reel
Transformer Type LAN
Inductance 10µH
Mounting SMD (SMT)
Dimension 0.691" L x 0.480" W (17.55mm x 12.20mm)
Height - Seated (Max) 0.246" (6.25mm)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number SM516
Other Names SM51625ELCT,SM51625ELDKR,SM51625ELTR,SM51625EL
Standard Package 350
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232756-SM51625EL
Ultra Librarian 3D Model Ultra Librarian SM51625EL CAD Model

Description

The Bourns Inc. SM51625EL is a pulse transformer that is designed to provide a high level of performance and reliability.

  • Transformer Type: LAN
  • Inductance: 10μH
  • Height: 0.246" (6.25mm) when seated
  • Standard Package: 350
  • Mounting: Surface mount mounting
  • Temperature Range: -40°C to 85°C
  • RoHS Compliant: RoHS compliant
