Same model may have multiple batches, images only for reference.

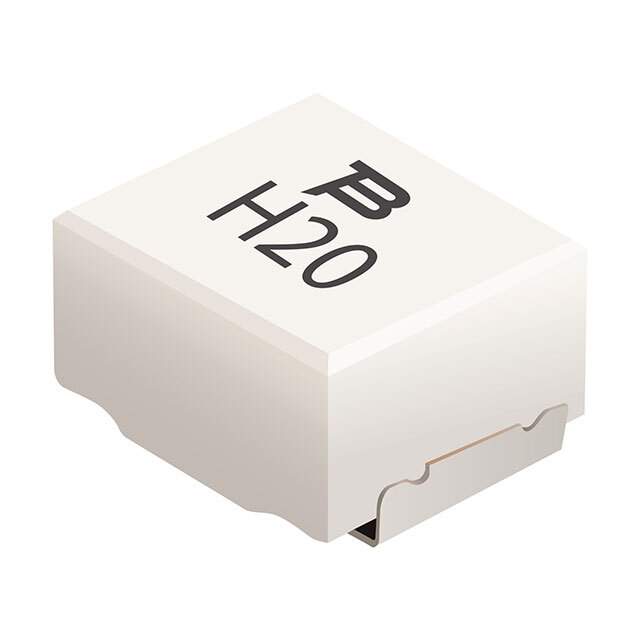

SF-2923HC20C-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2923HC20C-2

Part No SF-2923HC20C-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2923HC20C-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2923HC-C
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 20 A
Voltage Rating - DC 60 V
Response Time Fast Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 300A
Melting I2t 108
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.287" L x 0.228" W x 0.157" H (7.30mm x 5.80mm x 4.00mm)
DC Cold Resistance 0.002 Ohms
Base Product Number SF-2923
Other Names SF-2923HC20C-2TR,SF-2923HC20C-2CT,SF-2923HC20C-2DKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301964-SF-2923HC20C-2
Ultra Librarian 3D Model Ultra Librarian SF-2923HC20C-2 CAD Model

Description

The SF-2923HC20C-2 is a circuit protection fuse product manufactured by Bourns Inc.

  • Response Time: Fast blow
  • Rated Voltage: 60V
  • Win Source Part Number: 1301964-SF-2923HC20C-2
  • Breaking Capacity: 300A
  • Current Rating: 20A
