Same model may have multiple batches, images only for reference.

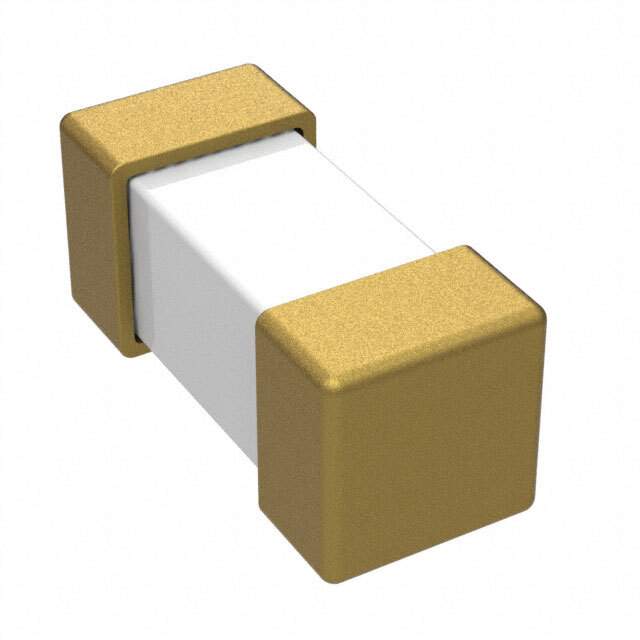

SF-2410FP500T-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2410FP500T-2

Part No SF-2410FP500T-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2410FP500T-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2410FP-T
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A
Melting I2t 6.175
Approval Agency cUL, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm)
DC Cold Resistance 0.013 Ohms
Other Names SF-2410FP500T-2TR,SF-2410FP500T-2DKR,SF-2410FP500T-2CT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302001-SF-2410FP500T-2
Ultra Librarian 3D Model Ultra Librarian SF-2410FP500T-2 CAD Model

Description

The SinglFuse™ SF-2410FP-T series is a board mount circuit protection fuse that is designed to provide fast blow response time.

  • Voltage Rating: 125V AC and 125V DC
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 6.175
  • DC Cold Resistance: 0.013 Ohms
  • Package: Tape and reel
  • Dimension: 0.240” L x 0.102” W x 0.102” H (6.10mm x 2.59mm x 2.59mm)
  • Mounting Type: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Bourns Inc.
  • Approval: cUL and UL
