Same model may have multiple batches, images only for reference.

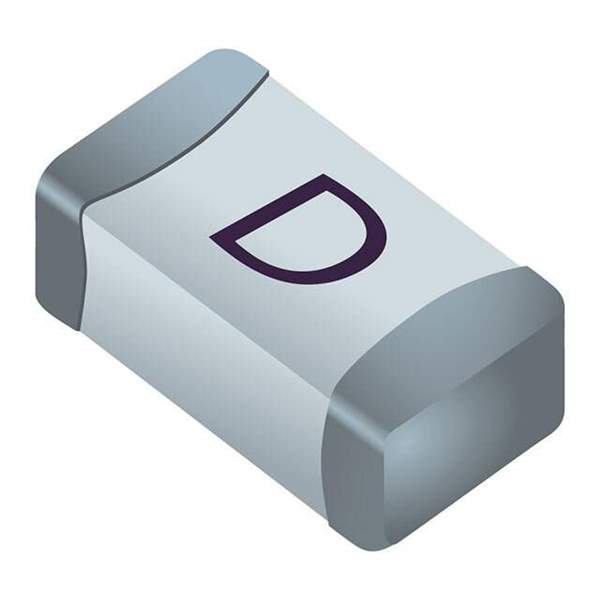

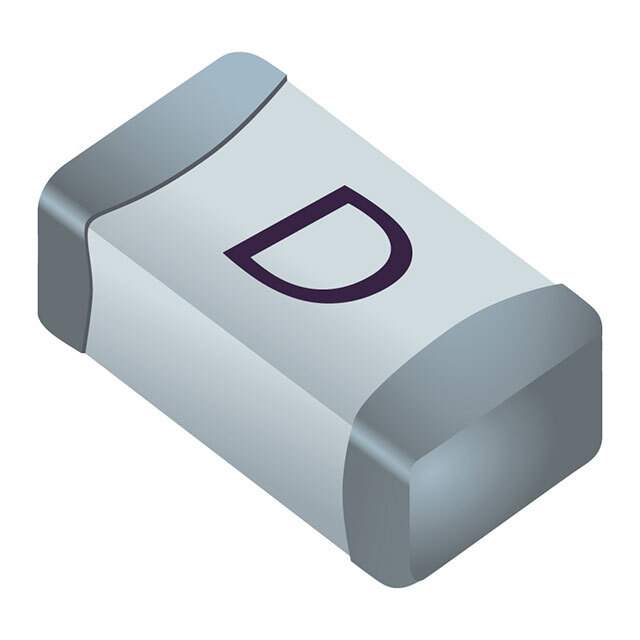

SF-1206S075M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S075M-2

Part No SF-1206S075M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S075M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 750 mA
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.005
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
DC Cold Resistance 0.513 Ohms
Base Product Number SF-1206
Other Names SF-1206S075M-2DKR,SF-1206S075M-2CT,SF-1206S075M-2TR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302040-SF-1206S075M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S075M-2 CAD Model

Description

The SinglFuse SF-1206SxxxM series fuse by Bourns Inc. is a board mount component that is designed to protect electronic circuits from overcurrent. This component has a voltage rating of 63 V DC, and a current rating of 750 mA.

  • Voltage Rating: 63 V DC
  • Current Rating: 750 mA
  • Response Time: Slow blow
  • Breaking Capacity: 50A @ rated voltage
  • Melting I2t: 0.005
  • DC Cold Resistance: 0.513 Ohms
  • Package / Case: 1206 (3216 Metric)
  • REACH: Unaffected
  • HTSUS: 8536.10.0040
