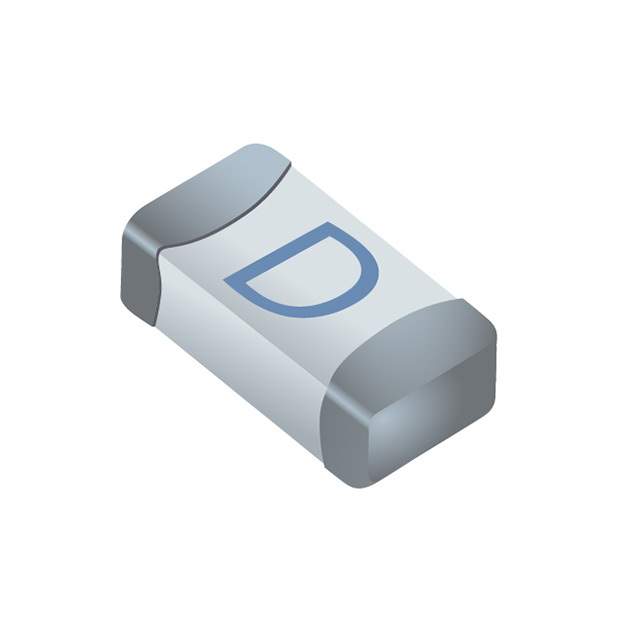

SF-0603FP125M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP125M-2

Part No SF-0603FP125M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP125M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FPxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.25 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.063
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
DC Cold Resistance 0.205 Ohms
Base Product Number SF-0603
Other Names SF-0603FP125M-2TR,SF-0603FP125M-2DKR,SF-0603FP125M-2CT
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302148-SF-0603FP125M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP125M-2 CAD Model

Description

The Bourns Inc. SinglFuse™ SF-0603FPxxxM series is a fast blow board mount fuse with a voltage rating of 32V DC and a current rating of 1.25 A manufactured by Bourns Inc.

  • Dimension: 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
  • Package: Tape and reel
  • Standard Package: 6,000
  • Mounting Style: SMD (SMT)
  • Fuse Type: Board mount (cartridge style excluded)
  • Breaking Capacity @ Rated Voltage: 35A
  • Melting I2t: 0.063
  • Temperature Range: -55°C to 150°C
  • Category: Circuit protection
