Same model may have multiple batches, images only for reference.

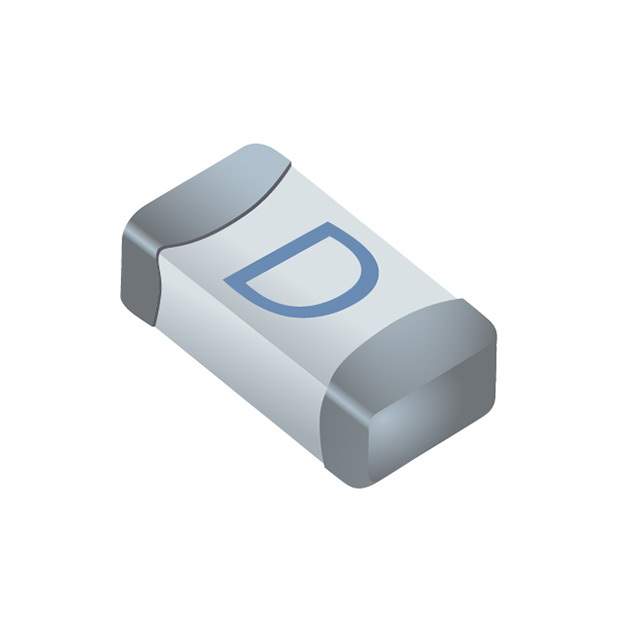

SF-0603FP100M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP100M-2

Part No SF-0603FP100M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP100M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FPxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.036
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
DC Cold Resistance 0.28 Ohms
Base Product Number SF-0603
Other Names SF-0603FP100M-2DKR,SF-0603FP100M-2CT,SF-0603FP100M-2TR
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302149-SF-0603FP100M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP100M-2 CAD Model

Description

The SF-0603FP100M-2 is a fuse designed for use in circuit protection and manufactured by Bourns Inc.

  • Series: SinglFuse™ SF-0603FPxxxM
  • Package: Tape & Reel
  • Standard Package: 6,000
  • Fuse Type: Board mount (cartridge style excluded)
  • Voltage Rating - DC: 32V
  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 0.036
  • DC Cold Resistance: 0.28 Ohms
  • Package: 0603 (1608 Metric)
  • Temperature Range: -55°C ~ 150°C
  • Dimension: 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.10.0040
  • Other Names: SF-0603FP100M-2DKR, SF-0603FP100M-2CT, and SF-0603FP100M-2TR
