Same model may have multiple batches, images only for reference.

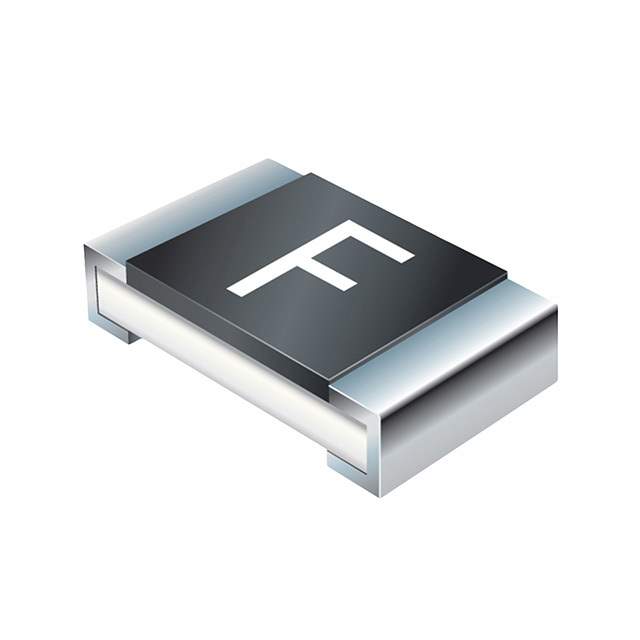

SF-0603FP080-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP080-2

Part No SF-0603FP080-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP080-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 800 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.014
Approval Agency UL
Temperature Range - Operating -40°C ~ 105°C
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Base Product Number SF-0603
Other Names SF-0603FP080-2TR,SF-0603FP080-2,SF-0603FP080-2CT,SF-0603FP080-2DKR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302159-SF-0603FP080-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP080-2 CAD Model

Description

The SinglFuse SF-0603FP080-2 is a circuit protection electronic component manufactured by Bourns Inc.

  • Type: Fast-blow
  • Fuse Type: Board mount
  • Breaking Capacity @ Rated Voltage: 50A
  • Voltage Rating for DC: 32V
  • Melting I2t: 0.014
  • Win Source Part Number: 1302159-SF-0603FP080-2
  • Category: Fuses
  • Package: Tape and reel
  • Mounting: SMD (SMT) technology
  • Package/Case: 0603 (1608 Metric)
  • Temperature Range: -40°C ~ 105°C
  • REACH: Unaffected
  • Approval Agency: UL
