Same model may have multiple batches, images only for reference.

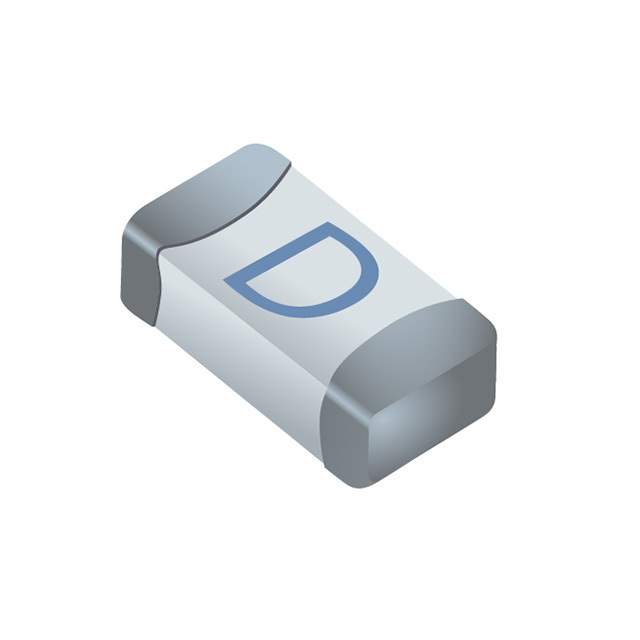

SF-0603FP050M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP050M-2

Part No SF-0603FP050M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP050M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FPxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0093
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
DC Cold Resistance 1 Ohms
Base Product Number SF-0603
Other Names SF-0603FP050M-2DKR,SF-0603FP050M-2CT,SF-0603FP050M-2TR
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302143-SF-0603FP050M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP050M-2 CAD Model

Description

The SF-0603FP050M-2 electronic component is a fuse from the SinglFuse™ SF-0603FPxxxM series manufactured by Bourns Inc.

  • Current Rating: 500 mA
  • Voltage Rating: 32V DC
  • Response Time: Fast-blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 0.0093
  • DC Cold Resistance: 1 Ohms
  • Mounting Type: Surface-mount device (SMD)
  • Package/Case: 0603 (1608 Metric)
