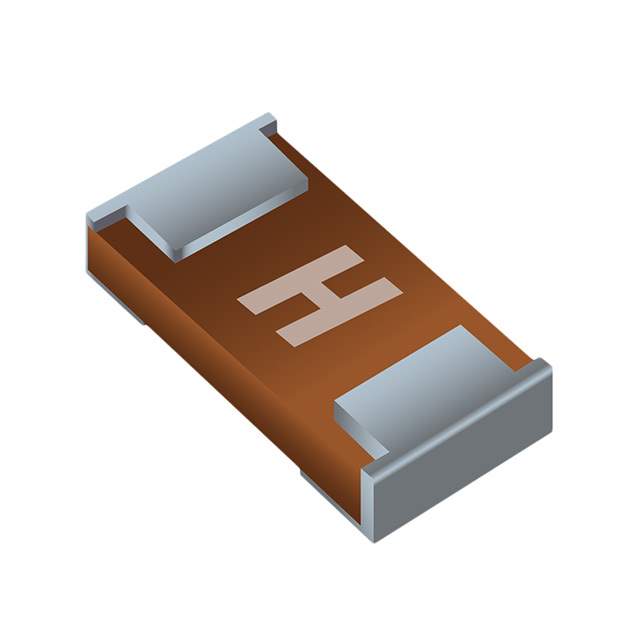

The SF-0603FP0375F-2 is a fast-acting surface mount fuse from Bourns Inc. designed to provide overcurrent protection in a variety of electronic applications. This fuse is part of the SinglFuse™ product line, known for their compact size and reliable performance. The "0603" designation indicates the fuse's physical dimensions, making it suitable for automated assembly processes and high-density circuit board layouts. The "3.75A" refers to the rated current.

Applications

• Portable electronic devices (smartphones, tablets)
• Solid State Drives (SSDs)
• Wearable electronics (smartwatches, fitness trackers)
• Power supply protection
• Battery chargers
• LED lighting

Features

• Fast-acting overcurrent protection: Quickly interrupts the circuit in the event of an overcurrent condition.
• Compact 0603 surface mount package: Saves valuable board space and is compatible with automated assembly.
• High inrush current withstand capability: Withstands high inrush currents without nuisance tripping.
• Ceramic body construction: Provides excellent thermal stability and mechanical strength.
• RoHS compliant: Meets environmental regulations for hazardous substances.
• Operating Temperature Range: Wide operating temperature range for reliable performance in diverse environments.

Benefits

• Protection against overcurrent damage: Prevents damage to sensitive electronic components caused by excessive current.
• Improved product reliability: Enhances the reliability and lifespan of electronic devices.
• Reduced warranty claims: Minimizes equipment failures due to overcurrent events.
• Smaller board size: Allows for more compact and efficient product designs.
• Cost-effective overcurrent protection: Provides a cost-efficient solution for protecting electronic circuits from overcurrent events.

Additional Details

The SF-0603FP0375F-2 has a rated current of 3.75A and a voltage rating typically around 32V DC. It is designed to interrupt the circuit quickly in the event of an overcurrent condition. Specific details on the interrupting rating, resistance, and other performance characteristics can be found in the Bourns datasheet for this fuse. This fuse provides robust and reliable overcurrent protection in a compact surface-mount package.
