Same model may have multiple batches, images only for reference.

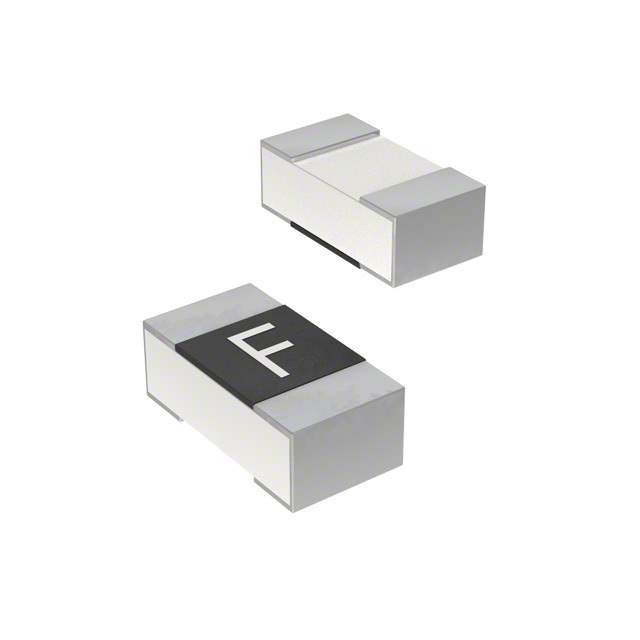

SF-0402S315-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402S315-2

Part No SF-0402S315-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402S315-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402S
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - DC 24 V
Response Time Slow Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.10868
Approval Agency UL
Temperature Range - Operating -40°C ~ 105°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
DC Cold Resistance 0.014 Ohms
Base Product Number SF-0402
Other Names SF-0402S315-2TR,SF-0402S315-2DKR,SF-0402S315-2CT,SF-0402S315-2
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302178-SF-0402S315-2
Ultra Librarian 3D Model Ultra Librarian SF-0402S315-2 CAD Model

Description

The SinglFuse SF-0402S315-2 is a slow-blow circuit protection fuse manufactured by Bourns Inc.

  • Voltage Rating: 24 V
  • Current Rating: 3.15 A
  • Mounting: Surface Mount Technology (SMT)
  • Temperature Range: -40°C to 105°C
  • Breaking Capacity: 35A
  • Melting I2t: 0.10868
  • Market Status: Commonly used and has a high popularity
