Same model may have multiple batches, images only for reference.

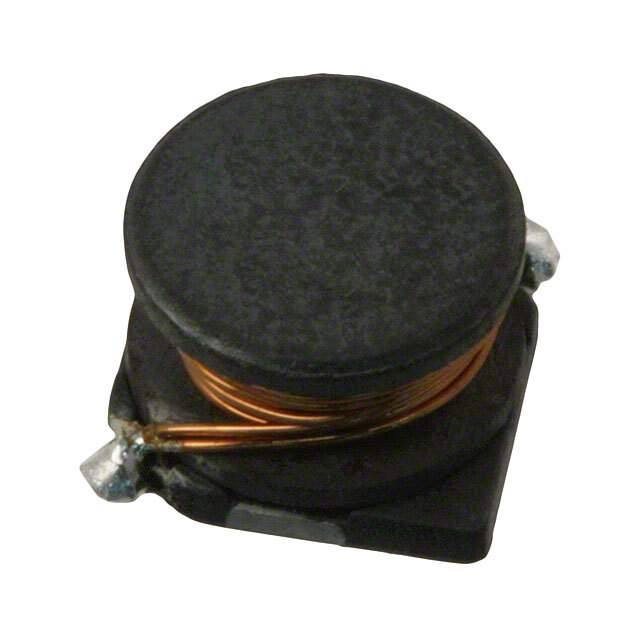

SDR7045-681K Real Image
Same model may have multiple batches, images only for reference.

SDR7045-681K

Part No SDR7045-681K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7045-681K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 260mA
Shielding Unshielded
DC Resistance (DCR) 2.4Ohm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR7045
Other Names SDR7045-681K,SDR7045-681KTR,SDR7045-681KCT,118-SDR7045-681KCT,SDR7045-681KTR,SDR7045-681KCT,SDR7045-681KDKR,118-SDR7045-681KTR,SDR7045-681KDKR,118-SDR7045-681KDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274480-SDR7045-681K
Ultra Librarian 3D Model Ultra Librarian SDR7045-681K CAD Model

Description

The Bourns Inc. SDR7045-681K is a drum core, wirewound fixed inductor.

  • Manufacturer: Bourns Inc.
  • Type: drum core, wirewound fixed inductor
  • Inductance: 680µH
  • Tolerance: ±10%
  • Core Material: ferrite core material
  • Q @ Freq: 18 @ 796kHz
  • Shielding: unshielded
  • Package/Case: nonstandard
  • DC Resistance (DCR): 2.4Ohm Max
  • Current Rating: 300mA
  • Temperature Range: -40°C ~ 125°C
  • Packaging: tape & reel
  • Height: 0.189" (4.80mm)
