Same model may have multiple batches, images only for reference.

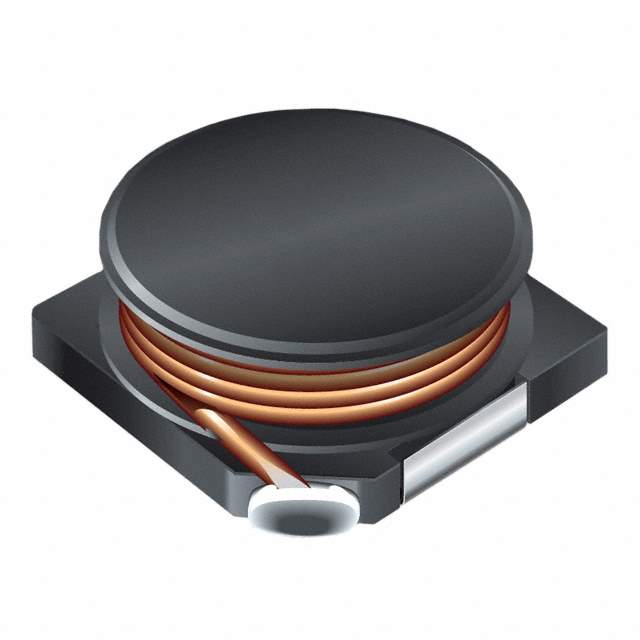

SDR7030-101K Real Image
Same model may have multiple batches, images only for reference.

SDR7030-101K

Part No SDR7030-101K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7030-101K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 460 mA
Current - Saturation (Isat) 520mA
Shielding Unshielded
DC Resistance (DCR) 720mOhm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR7030
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274496-SDR7030-101K
Ultra Librarian 3D Model Ultra Librarian SDR7030-101K CAD Model

Description

Bourns Inc. presents the SDR7030 series Drum Core, Wirewound Fixed Inductors with the Win Source Part Number 1274496-SDR7030-101K.

  • Manufacturer: Bourns Inc.
  • Shielding: unshielded
  • Inductance: 100 µH
  • Height-seated (Max): 0.130" (3.30mm)
  • Standard Package: 1,500
  • Mounting: SMD (SMT)
  • Tolerance: ±10%
  • Material Core: ferrite
  • Q @ Freq: 18 @ 796kHz
  • Frequency-self resonant: 15MHz
  • DC Resistance (DCR): 720mOhm Max
  • MSL level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
