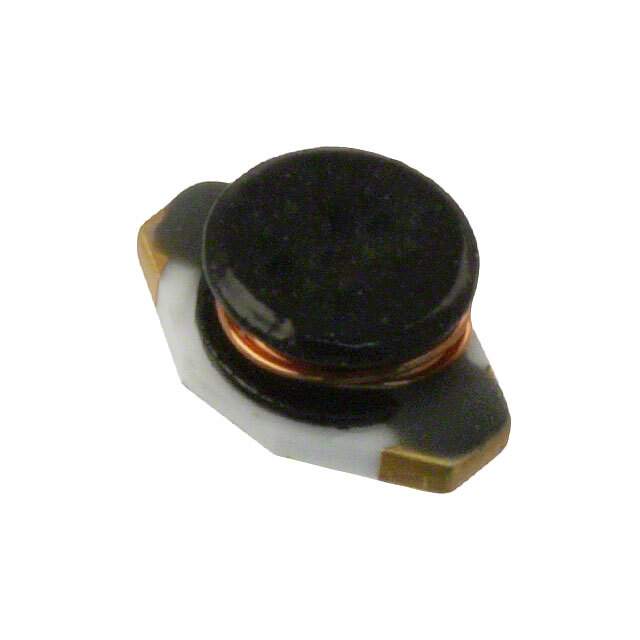

SDR6603-6R8M Real Image
Same model may have multiple batches, images only for reference.

SDR6603-6R8M

Part No SDR6603-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR6603-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR6603
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.2A
Shielding Unshielded
DC Resistance (DCR) 130mOhm Max
Q @ Freq 15.5 @ 7.96MHz
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SDR6603
Other Names SDR66036R8M,-SDR6603-6R8MTR,SDR6603-6R8M,-SDR6603-6R8M,SDR6603-6R8MTR,SDR6603-6R8MCT,-SDR6603-6R8M,-SDR6603-6R8MCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274502-SDR6603-6R8M
Ultra Librarian 3D Model Ultra Librarian SDR6603-6R8M CAD Model

Description

The Bourns Inc. SDR6603-6R8M is a fixed inductor with a drum core and wirewound type.

  • Shielding: Unshielded
  • Inductance: 6.8 µH
  • Package: 600
  • Mounting Style: SMD (SMT)
  • Tolerance: ±20%
  • Q @ Freq: 15.5 @ 7.96MHz
  • Frequency of Self-Resonant: 45MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 130mOhm Max
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
