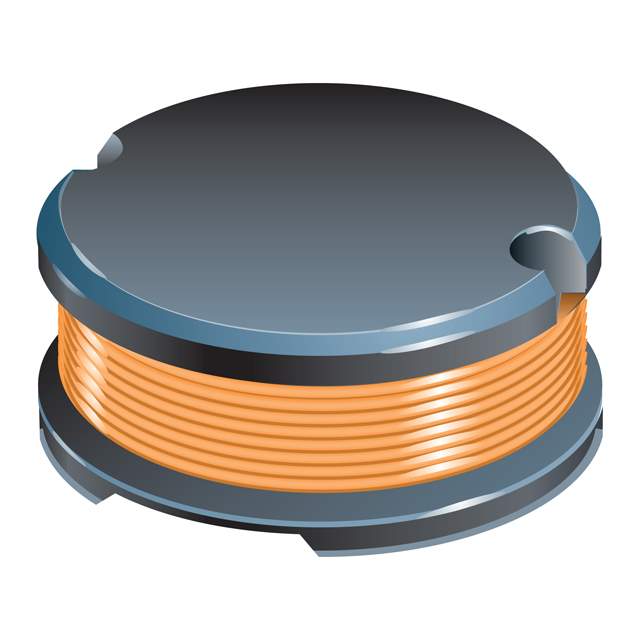

SDR1307A-181K Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-181K

Part No SDR1307A-181K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-181K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 180 µH
Tolerance ±10%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 2.3A
Shielding Unshielded
DC Resistance (DCR) 280mOhm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names 118-SDR1307A-181KCT,118-SDR1307A-181KTR,SDR1307A-181K,SDR1307A-181KCT,SDR1307A-181KTR,SDR1307A-181KTR,SDR1307A-181KDKR,SDR1307A-181KCT,SDR1307A-181KDKR,118-SDR1307A-181KDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274574-SDR1307A-181K
Ultra Librarian 3D Model Ultra Librarian SDR1307A-181K CAD Model

Description

The SDR1307A series inductor is a drum core, wirewound type inductor.

  • Inductance: 180 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 18 @ 796kHz
  • DC Resistance (DCR): 280mOhm Max
  • Current Rating (Amps): 1.5 A
  • Frequency Self-Resonant: 4MHz
  • Height Seated (Max): 0.287" (7.30mm)
  • Shielding: Non-shielded
  • Package: Tape & reel
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Rating: AEC-Q200
