Same model may have multiple batches, images only for reference.

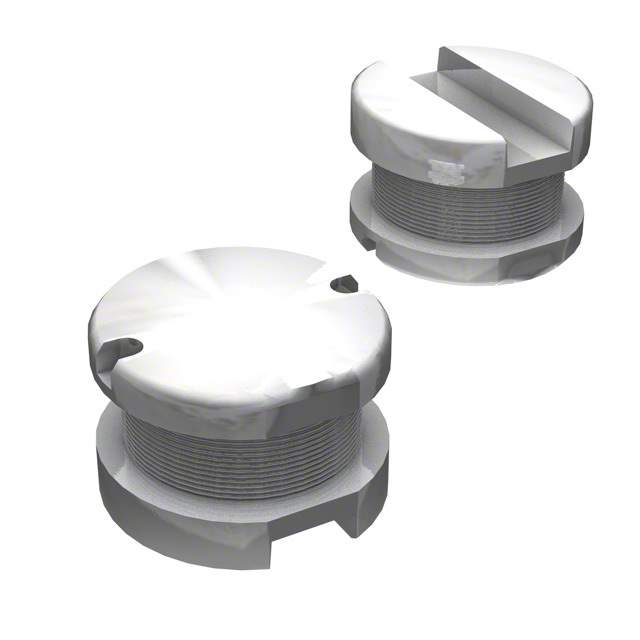

SDR0805-1R5ML Real Image
Same model may have multiple batches, images only for reference.

SDR0805-1R5ML

Part No SDR0805-1R5ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0805-1R5ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 9.1A
Shielding Unshielded
DC Resistance (DCR) 20mOhm Max
Q @ Freq 32 @ 7.96MHz
Frequency - Self Resonant 120MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SDR0805
Other Names SDR0805-1R5MLDKR,SDR0805-1R5MLCT,SDR0805-1R5MLTR,SDR08051R5ML,SDR0805-1R5ML
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274718-SDR0805-1R5ML
Ultra Librarian 3D Model Ultra Librarian SDR0805-1R5ML CAD Model

Description

The SDR0805 series inductor from Bourns Inc. is a drum core, wirewound type inductor with an inductance of 1.5µH.

  • Shielding: Unshielded
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 32 @ 7.96MHz
  • Frequency Self-Resonant: 120MHz
  • DC Resistance (DCR): 20mOhm Max
  • Package/Case: Nonstandard
  • Height-Seated (max): 0.209" (5.30mm)
  • Current Rating: 6A
  • Operating Temperatures: -40°C to 125°C
