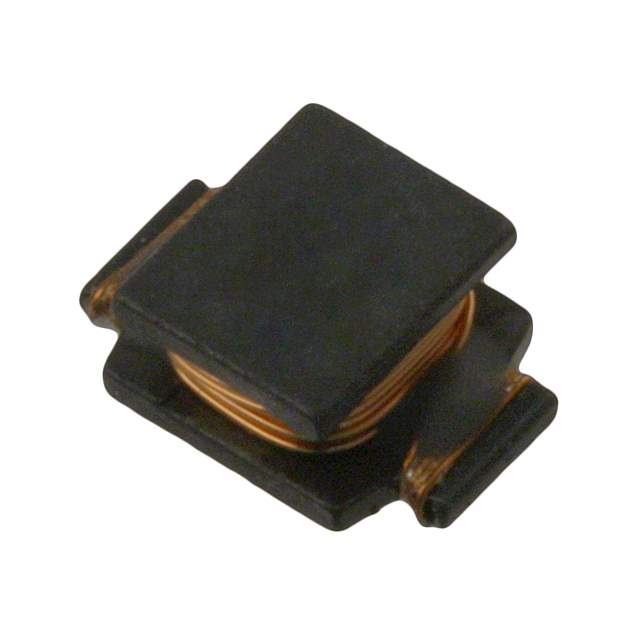

SDR0703-391KL Real Image
Same model may have multiple batches, images only for reference.

SDR0703-391KL

Part No SDR0703-391KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-391KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 390 µH
Tolerance ±10%
Current Rating (Amps) 140 mA
Current - Saturation (Isat) 180mA
Shielding Unshielded
DC Resistance (DCR) 6.2Ohm Max
Q @ Freq 36 @ 796kHz
Frequency - Self Resonant 5.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Other Names -SDR0703-391KLCT,SDR0703-391KLCT,SDR0703-391KLTR,-SDR0703-391KLTR,-SDR0703-391KL,-SDR0703-391KL,SDR0703-391KL,SDR0703391KL
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274735-SDR0703-391KL
Ultra Librarian 3D Model Ultra Librarian SDR0703-391KL CAD Model

Description

The SDR0703 series inductor from Bourns Inc. is a drum core, wirewound type inductor with an inductance of 390µH.

  • Shielding: Unshielded
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 36 @ 796kHz
  • Frequency Self-Resonant: 5.5MHz
  • DC Resistance (DCR): 6.2Ohm Max
  • Package/Case: Nonstandard
  • Height-Seated (max): 0.106" (2.70mm)
  • Current Rating: 140mA
  • Operating Temperatures: -40°C to 125°C
