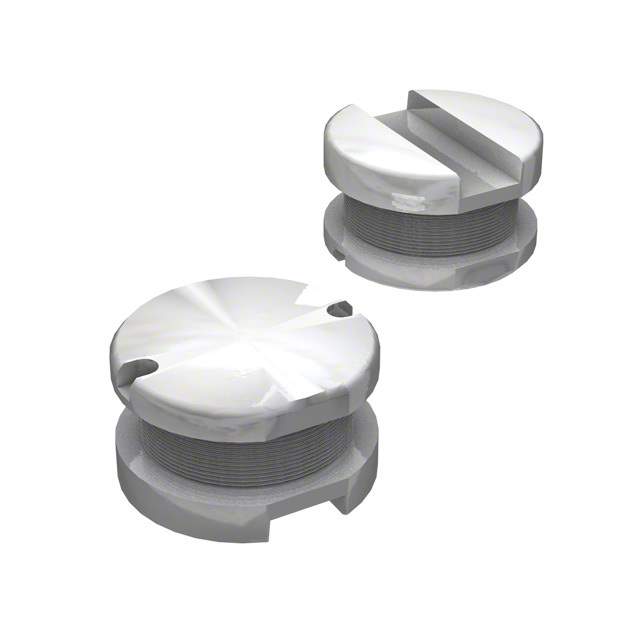

SDR0503-120ML Real Image
Same model may have multiple batches, images only for reference.

SDR0503-120ML

Part No SDR0503-120ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0503-120ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0503
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.45A
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 29MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR0503
Other Names SDR0503-120ML,SDR0503120ML,SDR0503-120MLDKR,SDR0503-120MLTR,SDR0503-120MLCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274824-SDR0503-120ML
Ultra Librarian 3D Model Ultra Librarian SDR0503-120ML CAD Model

Description

The Bourns Inc. SDR0503 series inductor is a drum core, wirewound type inductor with a nonstandard package/case.

  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 12 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 160mOhm Max
  • Current Rating (Amps): 1.2 A
  • Temperature Range: -40°C ~ 125°C
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency - Self-Resonant: 29MHz
  • Dimension: 0.197" L x 0.189" W (5.00mm x 4.80mm)
