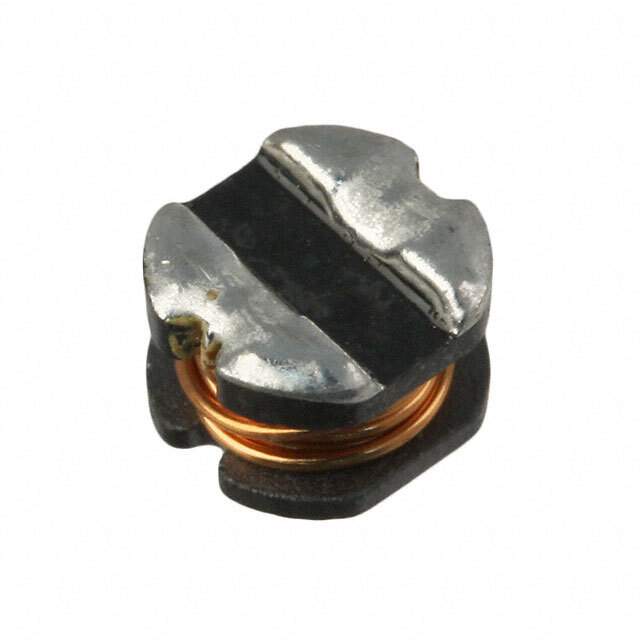

Same model may have multiple batches, images only for reference.

SDR0403-271KL

Name: SDR0403-271KL
Brand: Bourns Inc.
SKU: 1327767
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDR0403-271KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 270UH 200MA 5 OHM SMD / 270 µH Unshielded Drum Core, Wirewound Inductor 200 mA 5Ohm Max Nonstandard
Datasheet	SDR0403-271KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	270 µH
Tolerance	±10%
Current Rating (Amps)	200 mA
Current - Saturation (Isat)	300mA
Shielding	Unshielded
DC Resistance (DCR)	5Ohm Max
Q @ Freq	45 @ 796kHz
Frequency - Self Resonant	3MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max)	0.138" (3.50mm)
Base Product Number	SDR0403
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	SDR0403-271KLTR-ND,118-SDR0403-271KLTR,SDR0403-271KLCT-ND,-SDR0403-271KL,SDR0403-271KLCT,118-SDR0403-271KLCT,118-SDR0403-271KLDKR,SDR0403271KL,-SDR0403-271KLTR,SDR0403-271KLTR,-SDR0403-271KLCT
Standard Package	2,000
Win Source Part Number	1327767-SDR0403-271KL
Ultra Librarian 3D Model	Ultra Librarian SDR0403-271KL CAD Model

Alternative Products

Description

The Bourns Inc. SDR0403-271KL is a drum core, wirewound inductor with an inductance of 270 µH and ±10% tolerance.

Core Material: Ferrite
Shielding: Unshielded
Q @ Freq: 45 @ 796kHz
Frequency Self-Resonant: 3MHz
DC Resistance (DCR): 5Ohm Max
Current Rating: 200 mA
Operating Temperature: -40°C ~ 125°C
Case/Package: Non-Standard
Standard Package: 2,000
Mounting: Surface Mount
Height Seated (Max): 0.138" (3.50mm)
REACH: Unaffected
ROHS3 Compliant: Yes
